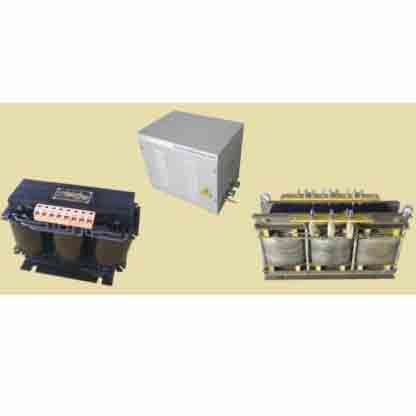

SG Series Marine Three-phase Dry Type Transformer (Servo Transformer)
General
SG series three-phase dry type transformer is widely used in AC 50~60Hz, input, output voltage not exceeding 500V various three-phase power supply, the input, output voltage level, connection groups, regulating the number and location of pile head (±5%), winding capacity allocation, the secondary winding equipment, rectifier circuits, used whether band shell, can be in accordance with the requirements of users design and manufacture.
Technical Data
| Type | Capacity KVA | Outer Dimensions (mm) L (Length) | Outer Dimensions (mm) W (Width) | Outer Dimensions (mm) H (Height) | Installation Size (mm) L1 (Length) | Installation Size (mm) W1 (Width) | Installation Hole (mm) Φ |
|---|---|---|---|---|---|---|---|
| SG-0.16 | 0.16 | 160 | 80 | 130 | 80 | 50 | Φ5 |
| SG-0.25 | 0.25 | 160 | 100 | 130 | 80 | 50 | Φ5 |
| SG-0.4 | 0.4 | 180 | 110 | 140 | 100 | 100 | Φ5 |
| SG-0.63 | 0.63 | 200 | 130 | 180 | 120 | 100 | Φ6 |
| SG-1 | 1 | 250 | 160 | 200 | 120 | 120 | Φ6 |
| SG-1.6 | 1.6 | 220 | 160 | 200 | 120 | 120 | Φ6 |
| SG-2.5 | 2.5 | 300 | 190 | 250 | 140 | 140 | Φ8 |
| SG-4 | 4 | 300 | 200 | 300 | 170 | 140 | Φ8 |
| SG-6.3 | 6.3 | 310 | 210 | 300 | 170 | 140 | Φ8 |
| SG-8 | 8 | 460 | 230 | 370 | 250 | 200 | Φ8 |
| SG-10 | 10 | 460 | 230 | 370 | 250 | 200 | Φ8 |
| SG-16 | 12.5-16 | 510 | 230 | 420 | 250 | 200 | Φ10 |
| SG-20 | 18-22.5 | 510 | 250 | 470 | 300 | 220 | Φ10 |
| SG-28 | 25-28 | 600 | 270 | 470 | 300 | 220 | Φ12 |
| SG-30 | 30-40 | 600 | 300 | 470 | 300 | 240 | Φ12 |
| SG-56 | 50-56 | 685 | 360 | 580 | 350 | 240 | Φ12 |
| SG-71 | 63-71 | 715 | 360 | 580 | 400 | 240 | Φ12 |
| SG-80 | 80 | 790 | 380 | 630 | 400 | 250 | Φ12 |
| SG-100 | 100 | 790 | 400 | 630 | 400 | 250 | Φ12 |
| SG-140 | 125-140 | 880 | 410 | 750 | 450 | 260 | Φ14 |
| SG-200 | 160-200 | 880 | 420 | 750 | 450 | 260 | Φ14 |
| SG-250 | 200-250 | 1130 | 410 | 830 | 500 | 260 | Φ14 |
| SG-315 | 280-315 | 1130 | 510 | 830 | 500 | 270 | Φ16 |
| SG-400 | 400 | 1130 | 570 | 830 | 500 | 280 | Φ16 |
Note: The description may be different with the product, please contact us for quotation.
