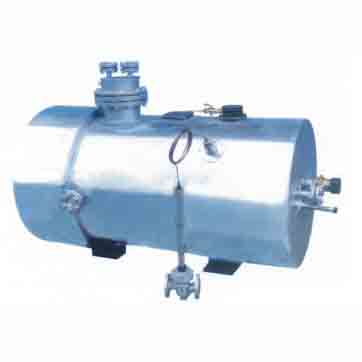

Marine Steam Heating Hot Water Tank

Marine Steam Heating Hot Water Tank

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

ZRG Series Marine Steam Heating Hot Water Tank – CB456-92

Application

This series of marine hot water tanks is suitable for fresh water systems where water is heated by steam. It supplies hot water for crew members’ daily use.

Main Technical Parameters (See Table 1)

Type Capacity (m³) Design Pressure (MPa) Working Pressure (MPa) Water Inlet Temp. (°C) Water Outlet Temp. (°C) Steam Pressure (MPa) Heated-Water Capacity (kg/h) Steam Consumption (kg/h) Weight (kg)
ZRG-0.12 0.12 0.7 0.6 15 65 0.3 275 27.5 170
ZRG-0.2 0.2 0.7 0.6 15 65 0.3 450 45 202
ZRG-0.3 0.3 0.7 0.6 15 65 0.3 750 75 262
ZRG-0.5 0.5 0.7 0.6 15 65 0.3 1200 120 395
ZRG-1.0 1.0 0.7 0.6 15 65 0.3 3250 325 589

Structure Diagram and General Dimensions (See Fig. 1 & Table 2)

Component Identification (Refer to Fig. 1)

  1. Discharge valve

  2. Main body

  3. Pressure gauge

  4. Safety valve

  5. Thermometer

  6. Steam heater

  7. Temperature regulating valve

    • Cold water inlet

    • Hot water outlet

    • Returning water inlet

    • Discharge

    • Steam inlet & outlet

Fig. 1 applies to models 0.12 m³ – 0.3 m³ and 0.5 m³ – 1.0 m³.

Table 2 – Dimensions

Type Heating Area (m²) D A B d1 d2 d3 C L h1 h2 h3 H
ZRG-0.12 0.24 400 608 666 DN25 DN20 DN20 – 314 300 470 – 1270
ZRG-0.2 0.38 500 708 766 DN25 DN20 DN20 – 364 330 560 – 1350
ZRG-0.3 0.6 600 808 903 DN32 DN25 DN25 Φ490 470 500 – 1230 1800
ZRG-0.5 1.0 700 910 955 DN40 DN25 DN25 Φ630 570 550 – 1390 2015

Model Designation Example

Steam heating hot water tank with a capacity of 0.5 m³.
Hot-water tank: ZRG-0.5 – CB456-92

Note: The description may be different with the product, please contact us for quotation.
