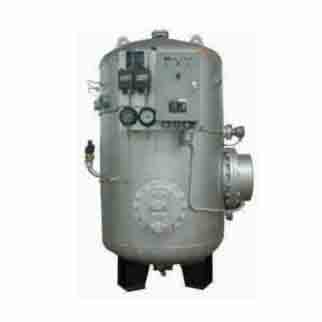

ZDR Series Electric/Steam Heating Calorifier
Application
This series of electric/steam heating calorifier is designed and manufactured according to CB/T3686-1995 standard. It is suitable for producing hot water on all kinds of ships with steam source or 380VAC, 50Hz or 440VAC, 60Hz power supply, and the water heated by steam or electricity is used for the life of the crew.
See the table for main technical parameters
Table 1
| Type | Capacity m³ | Design Pressure MPa | Working Pressure MPa | Water Inlet Temp ℃ | Water Outlet Temp ℃ | Steam Pressure MPa | Steam Heating Capacity kg/h | Steam Consumption kg/h | Electric Heating Capacity kg/h | Electric Heating Power KW | Power Supply | Weight kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ZDR-0.12 | 0.12 | 0.45 | 0.4 | 15 | 65 | 0.3 | 275 | 27.5 | 90 | 6 | 380V 50Hz or 440V 60Hz | 210 |
| ZDR-0.2 | 0.2 | 0.45 | 0.4 | 15 | 65 | 0.3 | 450 | 45 | 140 | 9 | 380V 50Hz or 440V 60Hz | 245 |
| ZDR-0.3 | 0.3 | 0.45 | 0.4 | 15 | 65 | 0.3 | 750 | 75 | 180 | 12 | 380V 50Hz or 440V 60Hz | 330 |
| ZDR-0.5 | 0.5 | 0.45 | 0.4 | 15 | 65 | 0.3 | 1200 | 120 | 280 | 18 | 380V 50Hz or 440V 60Hz | 400 |
| ZDR-1.0 | 1.0 | 0.45 | 0.4 | 15 | 65 | 0.3 | 3250 | 325 | 360 | 24 | 380V 50Hz or 440V 60Hz | 590 |
| ZDR-1.5 | 1.5 | 0.45 | 0.4 | 15 | 65 | 0.3 | 3259 | 325 | 540 | 36 | 380V 50Hz or 440V 60Hz | 760 |
Note: The description may be different with the product, please contact us for quotation.
