Ship Hot Water Tank
Usage and Features
The ship hot water tank provides heated water for crew members’ daily use. It features a low-pressure start and high-pressure stop water supply function, enabling automated control to meet automatic water supply needs. It is equipped with a pressure gauge, liquid level gauge, and safety valves for protection. It offers over-temperature and high-temperature automatic shutdown, along with over-temperature, overload, and water loss protection, as well as high-pressure relief devices, ensuring safe and reliable operation.
Depending on the ship’s heating resources, it can be manufactured as an electric heating hot water tank, a steam heating hot water tank, a hot oil heating hot water tank, or a dual-heat source combined hot water tank.
Specifications Table

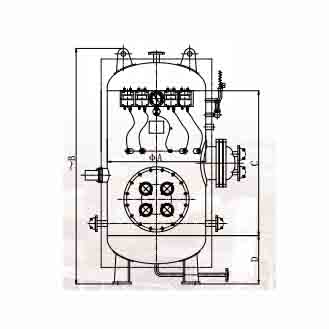

| Model | Volume | Steam Heating Area | Electric Heating Power | External Dimensions (mm) | |||
|---|---|---|---|---|---|---|---|
| ΦA | B | C | D | ||||
| JMRSG0.3 | 0.3 m³ | 0.6m² | 4X3KW | Φ610 | 1680 | 1000 | 400 |
| JMRSG0.5 | 0.5 m³ | 2m² | 4X6KW | Φ716 | 1770 | 1050 | 400 |
| JMRSG0.75 | 0.75 m³ | 2m² | 4X10KW | Φ816 | 1950 | 1200 | 400 |
| JMRSG1.0 | 1.0 m³ | 2.6m² | 4X10KW | Φ916 | 2120 | 1350 | 400 |
Note: Other specifications, materials, and external interface flange standard heat source methods can be designed and manufactured according to customer needs.
Note: The description may be different with the product, please contact us for quotation.
