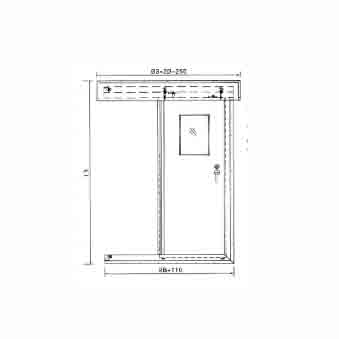

MARINE SLIDING DOOR FOR WHEEL HOUSE
CBM2055—82
262.YHS—005
THIS PRODUCT IS MADE IN ACCORDANCE WITH ISO STANDARD, WITH MERITS OF LOW NOISE, FINE APPEARANCE AND LIGHTWEIGHT, WHICH CAN BE USED FOR VARIOUS KINDS OF SHIPS.
表格
| CODE | MATERIAL |
|---|---|
| A | STAINLESS STEEL |
| B | ALUMINIUM |
| C | ALUMINUM DOOR BOARD, OTHER STEEL |
表格
| TYPE | SIZE OF DOORWAY
L×B |
FRAME SIZE
L1×B1 |
SIZE OF B.H. OPENING
L2×B2 |
EXTERNAL SIZE
L3×B3 |
D | OPENING | WEIGHT (KG)
A |
WEIGHT (KG)
B |
WEIGHT (KG)
C |
|---|---|---|---|---|---|---|---|---|---|
| A | 1700×750 | 1780×830 | 1785×835 | 2100×1750 | T+70 | LEFT (L) | 56 | 42 | 40 |
| B | 1700×800 | 1780×880 | 1785×885 | 2100×2050 | T+70 | LEFT (L) | 62 | 48 | 46 |
| B | 1800×800 | 1880×880 | 1885×885 | 2200×2050 | T+70 | RIGHT (R) | 66 | 52 | 50 |
| C | 1800×1000 | 1880×1080 | 1885×1085 | 2200×2250 | T+70 | RIGHT (R) | 72 | 58 | 56 |
AS INDICATION:
DOORWAY SIZE 1800×900mm, FRAME DEPTH D 200, LEFT SLIDING TYPE, A TYPE SLIDING DOOR FOR WHEEL HOUSE
SLIDING DOOR FOR WHEEL HOUSE A1800×900-200L 262.YHS-005
Note: The description may be different with the product, please contact us for quotation.
