A60 QUICK OPEN & CLOSE WEATHERTIGHT STEEL DOOR (SINGLE, DOUBLE)

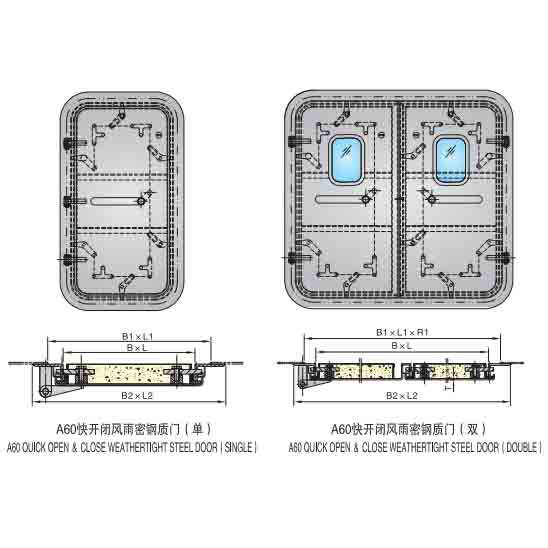

[Two technical diagrams: left is “A60 Quick Open & Close Weathertight Steel Door (Single)” labeled JY01 – 008, right is “A60 Quick Open & Close Weathertight Steel Door (Double)” labeled JY01 – 008M – 00. Each diagram shows a top – view with dimensions labeled B1×L1, B×L, B2×L2, and a side – view indicating the door’s structure.]
| Type | Size of Doorway B×L | Size of B.H. Opening B1×L1×R1 | Frame Size B2×L2 | Weight (KG) | Optional Items |
|---|---|---|---|---|---|
| Single – leaf (262WHL008FM – 00) | 600X1650 | 700X1750X150 | 800X1850 | 200 (for 600X1650 size with T = 8mm), 210 (for 800X1800 size with T = 8mm) | Door catch, Bumper, Door closer, C2 lock, ISPS device, Limit switch, Port light |
| 800X1800 | 900X1900X150 | 1000X2000 | 248 | ||
| 1200X2300 | 1300X2400X150 | 1400X2500 | 404 | ||
| Double – leaf (262WHL008M – 00) | 900X1650 | 1000X1750X150 | 1100X1850 | 300 | |
| 1000X1650 | 1100X1750X150 | 1200X1850 | 340 | ||
| 1200X1650 | 1300X1750X150 | 1400X1850 | 357 | ||
| 2400X2500 | 2500X2600X150 | 2600X2700 | 825 |
Note: The weight is calculated based on that T = 8mm.
Marking Examples:
- For a single – leaf A60 quick open & close weathertight steel door with a doorway size of 600X1650 (left – outer opening type) and a door panel thickness of 8mm: A60 Quick Open & Close Weathertight Steel Door (Single) 600X1650 – 8 – 6.1 JY01 – 008.
- For a double – leaf A60 quick open & close weathertight steel door with a doorway size of 1200X1650 and a door panel thickness of 8mm: A60 Quick Open & Close Weathertight Steel Door (Double) 1200X1650 – 8 – 5.1 & 6.1 JY01 – 008M – 00.
Attention please: The description might be incorrect, please contact us for confirmation.
