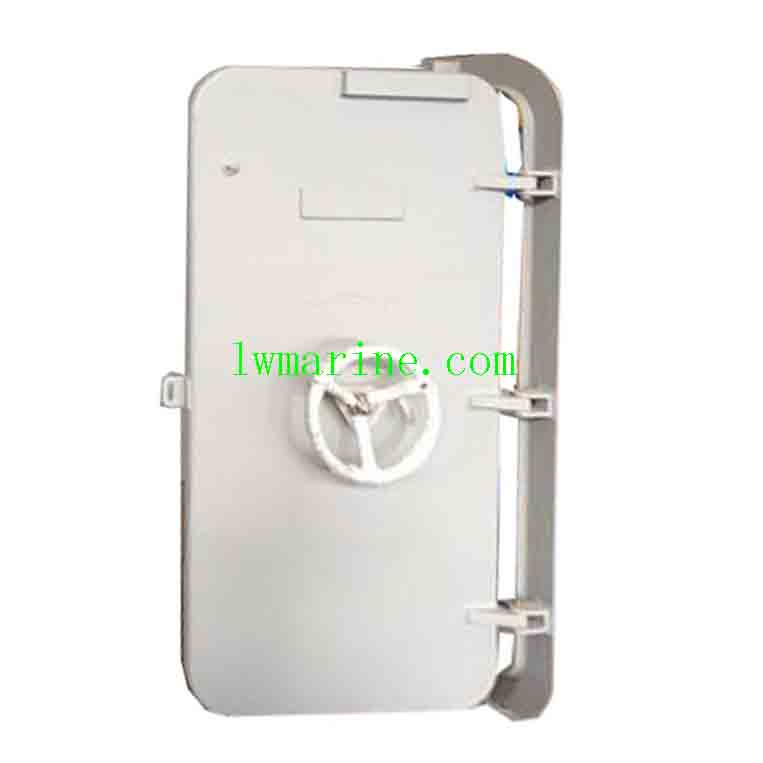

China Marine Aluminum Quick Acting Weathertight Door with Central Handwheel – Lightweight & Durable Solution for Maritime Applications
Elevate maritime safety and efficiency with our China Marine Aluminum Quick Acting Weathertight Door, designed to meet the rigorous demands of the marine environment. This door adheres to the standards CB/T3477-96 and CB/T454-1997 (for reference), ensuring compliance with industry best practices.
Key Features:
- Lightweight Construction: Significantly lighter than traditional steel doors, our aluminum quick-acting watertight door features an aluminum door leaf and a steel door frame, providing a perfect balance between strength and weight.
- Central Handwheel Operation: The door is operated by a central handwheel, which can be made of either carbon steel with hot-dip galvanization for enhanced corrosion resistance or stainless steel for added durability and aesthetic appeal.
- Optional Window Design: For improved visibility and natural light, the door can be equipped with a round or square window, enhancing the functionality and safety of maritime spaces.
- Customizable Thickness: Available in two thickness options, 6mm or 8mm, to suit different application requirements and provide optimal protection against water ingress.
- High-Quality Materials: The door leaf is crafted from aluminum alloy, while the door frame can be either aluminum alloy or steel, depending on your specific needs. The handwheel is made of robust carbon steel or stainless steel, ensuring long-lasting performance.
Main Size List (mm):
| Doorway Size (WxHxR) | Door Leaf Size (W1xH1xR1) | Wall Cut Out Size (W2xH2xR2) |
|---|---|---|
| 600x1200x100 | 645x1245xR124 | 680x1280xR140 |
| 650x1400x100 | 695x1445xR124 | 730x1480xR140 |
| 650x1600x100 | 698x1645xR124 | 730x1680xR140 (Note: Corrected from original to match likely intended size) |
| 700x1600x100 | 745x1645xR124 | 780x1680xR140 |
Frequently Asked Questions (FAQs):
Q1: What standards does the China Marine Aluminum Quick-Acting Weathertight Door comply with?
A1: Our door adheres to the standards CB/T3477-96 and CB/T454-1997 (for reference), ensuring its suitability for maritime applications and compliance with industry regulations.
Q2: Can the door be customized with a window?
A2: Yes, our marine aluminum quick-acting watertight door can be equipped with a round or square window, providing improved visibility and natural light in maritime spaces.
Q3: What materials are used for the door leaf and door frame?
A3: The door leaf is made of aluminum alloy, while the door frame can be either aluminum alloy or steel, depending on your specific requirements and preferences.
Q4: What are the available thickness options for the door?
A4: Our door is available in two thickness options: 6mm or 8mm. You can choose the appropriate thickness based on your application needs and desired level of protection against water ingress.
Q5: How is the door operated?
A5: The door is operated by a central handwheel, which can be made of carbon steel with hot-dip galvanization or stainless steel, providing a reliable and user-friendly mechanism for opening and closing the door.
Please Note: The description might be incorrect, please contact us for confirmation.
