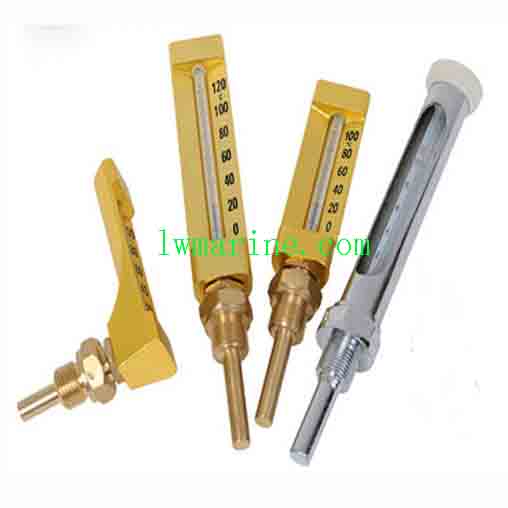

MARINE METALLIC PROTECTOR THERMOMETER WLG
GENERAL
Metallic protector thermometer consists of glass thermometer and metallic protector which possess the characteristic of resisting compression and can offer the safe protection. It is used to measure the temperature of liquid, gas and other medium in the tanks and pipelines of ships, chemical and industrial equipment.
TECHNICAL PARAMETER
-
Measuring range: -50~50℃, -30~50℃, 0~50~100℃
-
Upper body length: 110, 130, 150, 170
-
Accuracy: ±1.5 or ±2.0 division scale
-
Lower body length: 25, 30, 40, 60, 80, 100, 130, 160, 200
MODEL SIGN
(Legend: Marine; Additional protector (Optional); Double protector; Structure type: Straight type, Angle type; Housing type: Metal tube type Q235, SUS304, SUS316, Aluminum alloy flat type; Metallic protector thermometer)
ASSEMBLY AND OUTLINE DIMENSION
(Image labels: WLG-421, WLG-422, WLG-11, WLG-12)
Please mark the model, measuring range and the dimension of H, L, M of the product.
Note: The description may be different with the product, please contact us for quotation.
