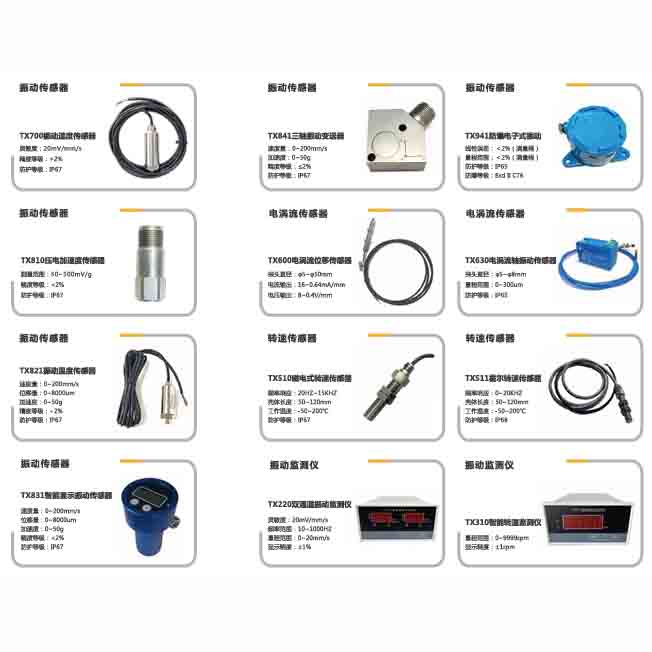

Marine Vibration Instrument
Vibration Sensors
- TX700 Vibration Velocity Sensor
- Sensitivity: 20mV/mm/s
- Frequency range: 10 – 1000Hz
- Protection grade: IP67
- TX841 Three – axis Vibration Transmitter
- Velocity range: 0 – 200mm/s
- Acceleration range: 0 – 50g
- Protection grade: IP67
- TX941 Explosion – proof Electronic Vibration Sensor
- Sensitivity: < ±2% (full – scale)
- Frequency range: < ±2% (full – scale)
- Protection grade: Exd II CT6
- TX810 Piezo – electric Acceleration Sensor
- Measurement range: 50 – 500mV/g
- Frequency range: 0.5 – 10000Hz
- Protection grade: IP67
- TX821 Vibration Temperature Sensor
- Velocity range: 0 – 200mm/s
- Temperature range: – 50 – 120°C
- Protection grade: IP67
- TX831 Intelligent Display Vibration Sensor
- Velocity range: 0 – 250mm/s
- Displacement range: 0 – 8000μm
- Protection grade: IP67
Vortex Flow Sensors
- TX600 Vortex Flow – position Sensor
- Probe diameter: φ5 – φ50mm
- Output signal: 4 – 20mA/0 – 10V
- Voltage output: 0 – 4V/mm
- TX630 Vortex Flow – shaft Vibration Sensor
- Probe diameter: φ5 – φ8mm
- Measurement range: 0 – 3000μm
- Protection grade: IP65
Speed Sensors
- TX510 Magnetoelectric Speed Sensor
- Frequency range: 20Hz – 15kHz
- Shell length: 50 – 120mm
- Protection grade: IP67
- TX511 Eddy Current Speed Sensor
- Frequency range: 0 – 20kHz
- Shell length: 50 – 120mm
- Protection grade: IP68
Vibration Monitors
- TX220 Dual – channel Vibration Monitor
- Sensitivity: 20mV/mm/s
- Frequency range: 10 – 1000Hz
- Measurement range: 0 – 200mm/s
- Display accuracy: ±1.5%
- TX310 Intelligent Speed Vibration Monitor
- Measurement range: 0 – 99999rpm
- Display accuracy: ±1rpm
Attention please: The description may be different with the product, please contact us for quotation.
