Marine Pressure Gauge and Transmitter
Intelligent Type
- TX3351 Pressure Transmitter
- Measurement range: 0 – 60MPa
- Working temperature: -40°C – 85°C
- Accuracy: ±0.075%FS, ±0.1%FS
- Protection grade: IP65/IP67
- Explosion – proof grade: Exia II CT6 Ga
- TX3351 Pressure Transmitter (flush type)
- Measurement range: 0 – 60MPa
- Working temperature: -40°C – 85°C
- Accuracy: ±0.075%FS, ±0.1%FS
- Protection grade: IP65/IP67
- Explosion – proof grade: Exia II CT6 Ga
- TX3351 Differential Pressure Transmitter
- Measurement range: 0 – 3MPa
- Working temperature: -40°C – 85°C
- Accuracy: ±0.075%FS, ±0.1%FS
- Protection grade: IP65/IP67
- Explosion – proof grade: Exia II CT6 Ga
- TX3351 Flush Diaphragm Pressure Transmitter
- Measurement range: 0 – 3MPa
- Working temperature: -40°C – 85°C
- Accuracy: ±0.075%FS, ±0.1%FS
- Protection grade: IP65/IP67
- Explosion – proof grade: Exia II CT6 Ga
- TX3351 Low – pressure/Level Transmitter
- Measurement range: 0 – 3MPa
- Working temperature: -40°C – 85°C
- Accuracy: ±0.075%FS, ±0.1%FS
- Protection grade: IP65/IP67
- Explosion – proof grade: Exia II CT6 Ga
- TX3351 Remote Seal Pressure Transmitter
- Measurement range: 0 – 3MPa
- Working temperature: -40°C – 85°C
- Accuracy: ±0.075%FS, ±0.1%FS
- Protection grade: IP65/IP67
- Explosion – proof grade: Exia II CT6 Ga
- Wireless Output Type TXW Wireless Pressure – temperature Integrated Transmitter
- Adopts 2.4G wireless transmission, integrated high – precision pressure and temperature measurement. It has a wide measurement range and high accuracy. With a large – capacity lithium battery, it can work continuously for a long time. Suitable for various industrial fields such as petroleum, chemical industry, and water treatment.

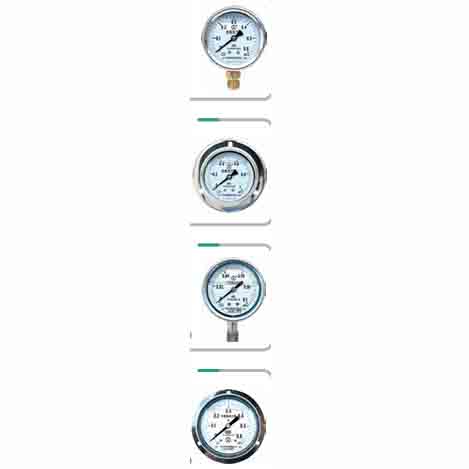

Stainless Steel Diaphragm Pressure Gauge
- Y – Z Series (radial)
- Dial size: 60, 100, 150mm
- Measurement range: -0.1 – 60MPa
- Accuracy: 1.6, 2.5
- Case material: 304 stainless steel
- Connection: M20×1.5 (304)
Stainless Steel Pressure Gauge
- Y – Z Series (axial)
- Dial size: 60, 100, 150mm
- Measurement range: -0.1 – 60MPa
- Accuracy: 1.6, 2.5
- Case material: 304 stainless steel
- Connection: M20×1.5 (304)
- Y – B Series (radial)
- Dial size: 60, 100, 150mm
- Measurement range: -0.1 – 60MPa
- Accuracy: 1.6, 2.5
- Case material: 304 stainless steel (OC17Ni12Mo2 (316) for some parts)
- Connection: M20×1.5 (304)
- Y – B Series (axial)
- Dial size: 60, 100, 150mm
- Measurement range: -0.1 – 60MPa
- Accuracy: 1.6, 2.5
- Case material: 304 stainless steel (OC17Ni12Mo2 (316) for some parts)
- Connection: M20×1.5 (304)
Attention please: The description may be different with the product, please contact us for quotation.
