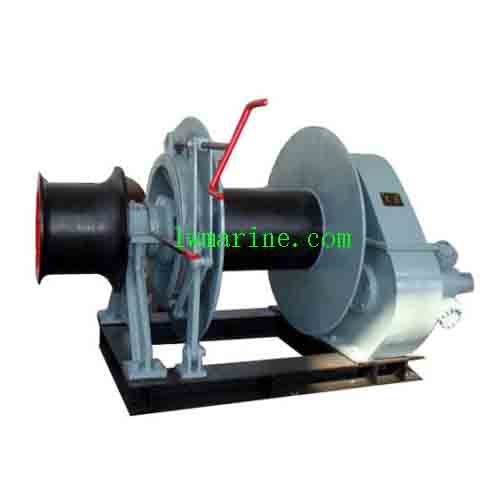

Marine Hydraulic Winch 40kn Technical Specifications
Performance Parameters
| Parameter | Specification |
| Nominal Line Speed | 12 m/min |
| Warping Head Capacity | 20 kN |
| Pulling Force (1st layer) | 40 kN |
| Maximum Support Load | 120 kN |
Hydraulic Drive System
-
Motor Model: HT-3-2800-L
-
Displacement: 2800 mL/rev
-
Operating Pressure: 16 MPa (Max) / 15 MPa (System)
-
Speed Range: 0-40 RPM (Variable)
-
Flow Requirement: 210 L/min
The description/sizes may be different with goods, please check with us when order.
