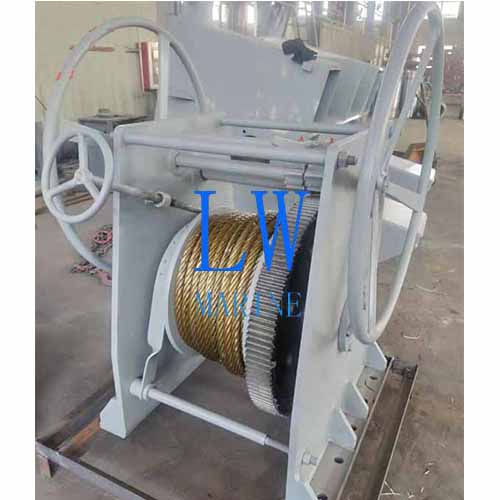

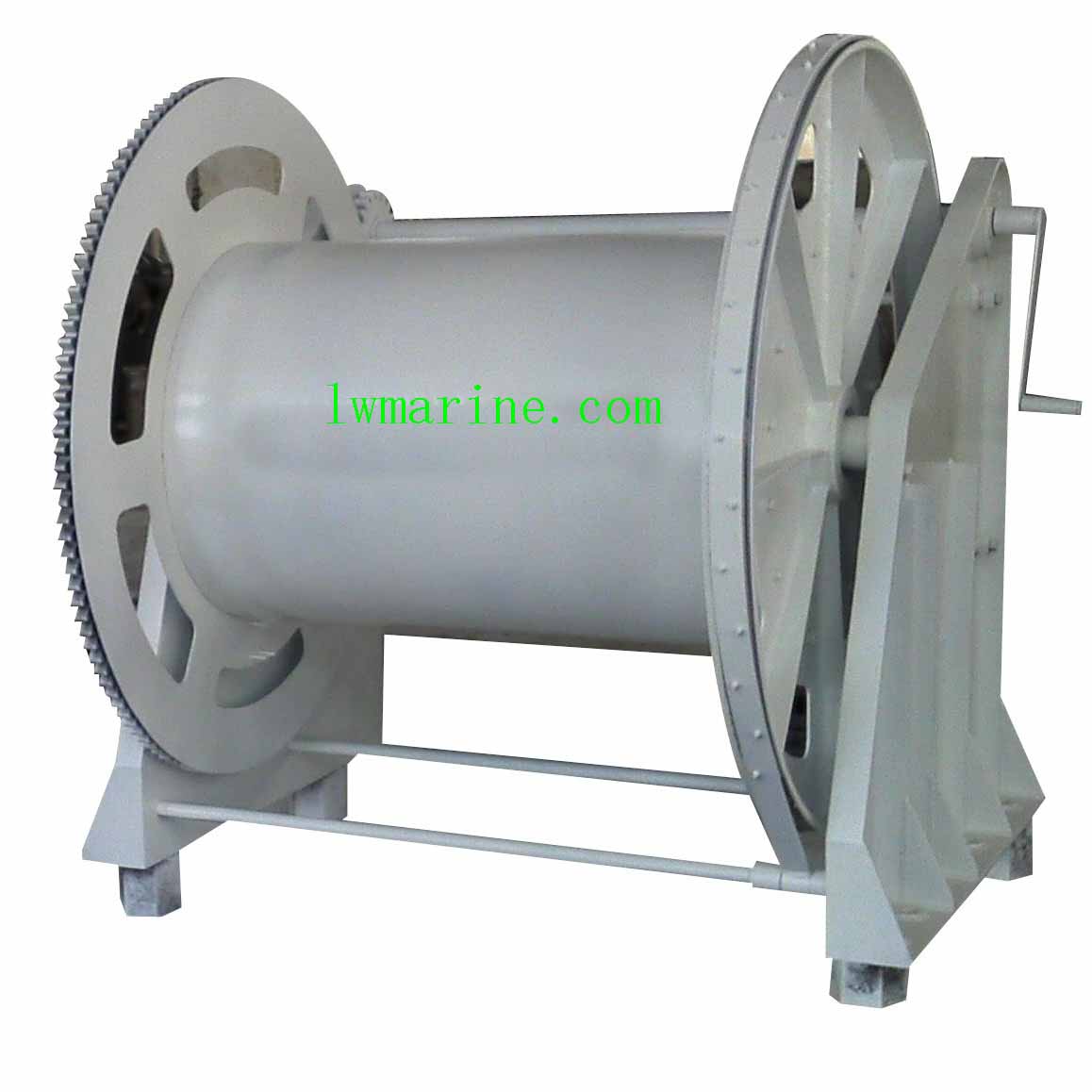

Marine Hand Winch Heavy Duty
Product Description:
Our marine hand winch provides a simple yet highly functional solution for lifting and pulling operations where power sources are unavailable or impractical. Designed for rugged marine environments, it offers reliable load management through mechanical advantage.
Parameters:
| Type | Pull | Ratio | Hand length(MM) | Drum diam(MM) | Wire diam(MM) |
| 5T | 50KN | 4.84 | 320 | 180 | 10 |
| 8T | 80KN | 4.83 | 350 | 250 | 14 |
| 10T | 100KN | 4.83 | 360 | 280 | 14 |
| 12T | 120KN | 4.86 | 360 | 300 | 15 |
| 16T | 160KN | 5.11 | 380 | 350 | 16 |
Note: The description might be incorrect, please contact us for confirmation.
