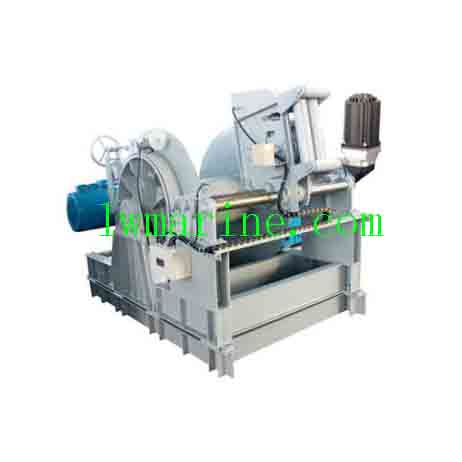

Barge Winch – Hydraulic & Electric Mooring Solutions for Marine Applications

Engineered for reliable performance in demanding marine environments, our barge winch delivers exceptional mooring control for various barge types and floating structures. Designed with working loads ranging from 100 kN to 1000 kN, these robust winches are available in electric, hydraulic, and diesel-powered configurations to meet diverse operational requirements. Equipped with optional spooling devices, centralized control stations, and CCTV monitoring systems, our barge winches ensure safe and efficient mooring operations in ports, rivers, and offshore applications.

Technical Specifications & Environmental Compliance

• Working Load Range: 100 kN – 1000 kN

• Power Options: Electric Motor, Hydraulic Pump Station, or Diesel Engine

• Environmental Operating Conditions:

  • Ambient Temperature: Up to 45°C

  • Sea Water Temperature: Up to 32°C

  • Relative Humidity: ≤70%

  • Ambient Pressure: 0.1 MPa

• Certification & Standards:

  • CCS (China Classification Society) Certified

  • Customizable to Other International Standards

Robust Material Construction

• Skid & Frame: Q235-A Steel

• Warping End: High-Strength Steel Casting

• Bush: Durable Brass

• Drum: Q235-A Steel

• Gear System:

  • Main Gear: ZG270-500

  • Pinion: 40Cr Alloy Steel

• Shaft: 40Cr Alloy Steel

• Brake System: Non-Asbestos Brake Band
