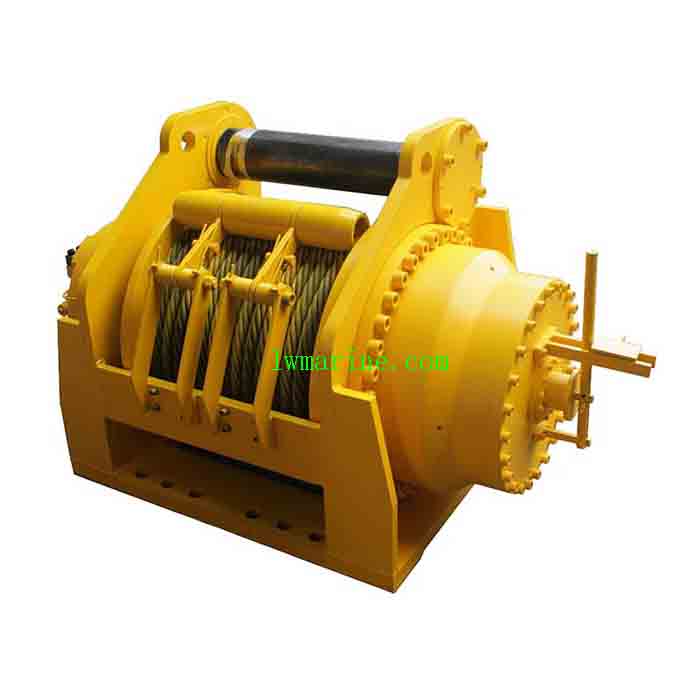

Compact Small Volume Winch
Cutting-Edge Design Elements
Modular Triad Configuration
Our compact Small Volume winch features a modular triad structure, which combines the brake, motor, and gearbox into a single integrated assembly. This innovative design not only simplifies installation but also enhances overall system reliability.
Space-Optimized Compact Design
With a space-saving compact footprint, our small-volume winch is ideal for applications where space is at a premium. Its streamlined design allows for easy integration into existing systems without requiring extensive modifications.
High-Precision Drive Mechanism
The winch is equipped with a precision drive system that includes hardened gear teeth, ensuring an extended service life even under heavy loads. The self-locking worm gear mechanism guarantees zero-backlash operation, providing smooth and accurate movement.
Advanced Motion Control Capabilities
Our compact winch incorporates variable frequency drive (VFD) regulation, enabling precise control over speed and torque. It offers smooth acceleration and deceleration profiles, reducing wear and tear on the system. Additionally, the torque-limiting scram protection feature safeguards against overloading, enhancing operational safety.
Compact Winch
Technical Parameters:
| Model | Speed (M/min) | Motor Power (Kw) | Wire Diameter (mm) | Rated Pull (KGS) | Drum Capacity (m) |
|---|---|---|---|---|---|
| First Layer | Full | First Layer | Middle | ||
| WJB-1 | 7.62 | 15.86 | 1.1 | 6.5 | 500 |
| WJB-2 | 9.76 | 22.27 | 1.5 | 6.5 | 500 |
| WJB-3 | 6.71 | 12.2 | 1.5 | 8 | 1000 |
| WJB-4 | 10.37 | 19.25 | 2.2 | 8 | 1000 |
| WJB-5 | 6.4 | 14.34 | 2.2 | 12 | 2000 |
| WJB-6 | 10.68 | 23.79 | 3 | 12 | 2000 |
| WJB-7 | 7.32 | 12.8 | 3 | 13 | 3000 |
| WJB-8 | 10.68 | 18.59 | 5.5 | 13 | 3000 |
| WJB-9 | 8.23 | 14.337 | 5.5 | 16 | 5000 |
| WJB-10 | 11.9 | 19.51 | 7.5 | 16 | 5000 |
Note: The description might be incorrect, please contact us for confirmation.
