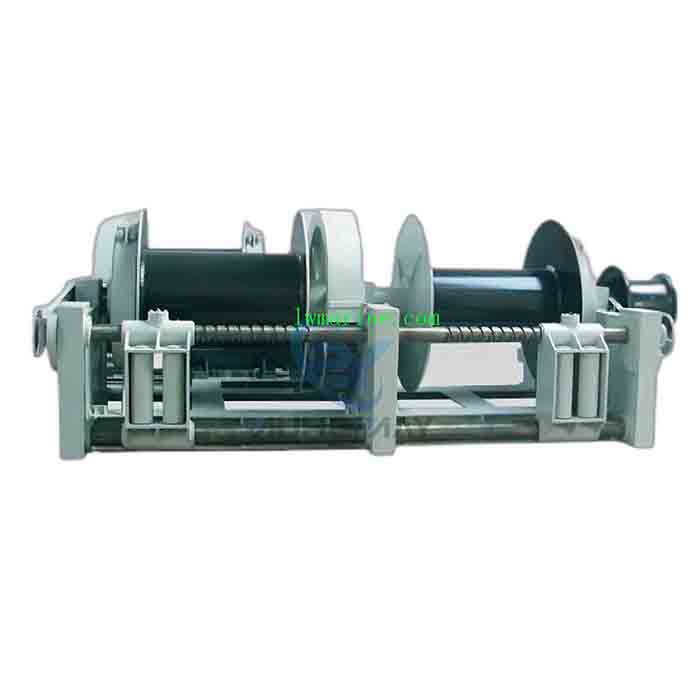

Electric Double Drum Winch
LW Marine’s Electric Double Drum Winch is engineered for high-capacity, multi-functional load management, featuring dual drums for simultaneous or independent operation. Powered by robust electric motors and certified by CCS, BV, LR, it excels in towing, mooring, and cargo handling with enhanced rope storage and operational flexibility.
Key Features & Benefits
✔ Dual-Drum Versatility – Independent or synchronized control for complex operations
✔ High Load Capacity – 5–50-ton pulling force (customizable)
✔ Corrosion-Resistant – Stainless steel/Aluminum housing for saltwater durability
✔ Smart Control – Remote operation (IP67 waterproof) + auto-tensioning
✔ Safety Systems – Hydraulic brakes, overload protection, and emergency stop
✔ Compact & Modular – Space-efficient design with optional warping heads
Technical Specifications
| Parameter | Specification |
|---|---|
| Drum Configuration | Double drum (parallel or vertical) |
| Motor Power | 3kW–75kW (1/2/3-speed options) |
| Rope Capacity | 200m–1000m (Ø12mm–Ø60mm) |
| Control | Local panel + wireless remote |
| Certifications | CCS, BV, LR, ABS, DNV (on request) |
Parameters:
| Drum load | Nom.Speed | Power | Holding load | Rope dia. | |||
| Nylon | Wire Rope | ||||||
| T | kN | m/min | kN | T | kN | mm | mm |
| 5 | 50 | 15 | 16 | 15 | 150 | 45 | 20 |
| 8 | 80 | 15 | 25 | 24 | 240 | 50 | 26 |
| 10 | 100 | 15 | 32 | 31 | 310 | 55 | 28 |
| 12.5 | 125 | 15 | 38 | 36 | 360 | 64 | 30 |
| 16 | 160 | 15 | 50 | 48 | 480 | 75 | 38 |
| 20 | 200 | 15 | 61 | 63 | 630 | 90 | 40 |
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
