Marine Fluorescent Pendant Light

Marine Fluorescent Pendant Light

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Marine Fluorescent Pendant Light

ZYC21 Series Fluorescent Pendant Light
Current type Power Voltage/Frequency Weight Protection Class H
ZYC21-2 20W x 2 110V/60Hz 5.3kg IP56 130
ZYC21-2E 20W x 2 220V/50Hz 60Hz 5.4kg IP56 130
ZYC21-2EF 20W x 2 220V/50Hz 60Hz 7.0kg IP56 148
ZYC22 Series Fluorescent Pendant Light
Current type Power Voltage/Frequency Weight Protection Class L L1 H
ZYC22-2 20W x 2 110V/60Hz 5.3Kg IP56 690 480 127
ZYC22-2E 20W x 2 220V/50Hz 60Hz 5.3Kg IP56 690 480 127
ZYC22-2EF 20W x 2 220V/50Hz 60Hz 6.8Kg IP56 690 480 148
ZYC32-2 30W x 2 110V/60Hz 9.1Kg IP56 992 700 127
ZYC32-2E 30W x 2 220V/50Hz 60Hz 9.2Kg IP56 992 700 127
ZYC32-2EF 30W x 2 220V/50Hz 60Hz 10Kg IP56 992 700 148
ZYC42-2 40W x 2 110V/60Hz 9.3Kg IP56 1294 700 127
ZYC42-2E 40W x 2 220V/50Hz 60Hz 9.4Kg IP56 1294 700 127
ZYC42-2EF 40W x 2 220V/50Hz 60Hz 10.2Kg IP56 1294 700 148
ZYC22 Series Fluorescent Pendant Light (With Emergency Accumulator)
Current type Power Voltage/Frequency Weight Protection Class L L1 H
ZYC22-2Z/G 20W x 2 110V/60Hz 5.3Kg IP56 690 480 127
ZYC22-2EZ/G 20W x 2 220V/50Hz 60Hz 5.3Kg IP56 690 480 127
ZYC22-2EFZ/G 20W x 2 220V/50Hz 60Hz 6.8Kg IP56 690 480 148
ZYC32-2Z/G 30W x 2 110V/60Hz 9.1Kg IP56 992 700 127
ZYC32-2EZ/G 30W x 2 220V/50Hz 60Hz 9.2Kg IP56 992 700 127
ZYC32-2EFZ/G 30W x 2 220V/50Hz 60Hz 10Kg IP56 992 700 148
ZYC42-2Z/G 40W x 2 110V/60Hz 9.3Kg IP56 1294 700 127
ZYC42-2EZ/G 40W x 2 220V/50Hz 60Hz 9.4Kg IP56 1294 700 127
ZYC42-2EFZ/G 40W x 2 220V/50Hz 60Hz 10.2Kg IP56 1294 700 148

Remark: This series of lamp with automatic emergency accumulator, Z is bulb emergency, working voltage is 24V, bulb power is 8 – 1.5W, the lamp holder is B15d, G is tube(single)emergency, the period of automatic emergency illumination is 90-150 min when power failure.

ZYC23 Series Fluorescent Pendant Light
Current type Power Voltage/Frequency Weight Protection Class L L1 H
ZYC23-2 20W x 2 110V/60Hz 6.2Kg IP56 690 480 127
ZYC23-2E 20W x 2 220V/50Hz 60Hz 6.3Kg IP56 690 480 127
ZYC23-2EF 20W x 2 220V/50Hz 60Hz 6.9Kg IP56 690 480 148
ZYC33-2 30W x 2 110V/60Hz 9.2Kg IP56 992 700 127
ZYC33-2E 30W x 2 220V/50Hz 60Hz 9.3Kg IP56 992 700 127
ZYC33-2EF 30W x 2 220V/50Hz 60Hz 10Kg IP56 992 700 148
ZYC43-2 40W x 2 110V/60Hz 10.5Kg IP56 1294 700 127
ZYC43-2E 40W x 2 220V/50Hz 60Hz 10.6Kg IP56 1294 700 127
ZYC43-2EF 40W x 2 220V/50Hz 60Hz 12.3Kg IP56 1294 700 148
ZYC24 Series Fluorescent Pendant Light
Current type Power Voltage/Frequency Weight Protection Class L L1 H
ZYC24-2 20W x 2 110V/60Hz 6.2Kg IP56 690 480 127
ZYC24-2E 20W x 2 220V/50Hz 60Hz 6.3Kg IP56 690 480 127
ZYC24-2EF 20W x 2 220V/50Hz 60Hz 6.9Kg IP56 690 480 148
ZYC34-2 30W x 2 110V/60Hz 9.2Kg IP56 992 700 127
ZYC34-2E 30W x 2 220V/50Hz 60Hz 9.3Kg IP56 992 700 127
ZYC34-2EF 30W x 2 220V/50Hz 60Hz 10Kg IP56 992 700 148
ZYC44-2 40W x 2 110V/60Hz 10.5Kg IP56 1294 700 127
ZYC44-2E 40W x 2 220V/50Hz 60Hz 10.6Kg IP56 1294 700 127
ZYC44-2EF 40W x 2 220V/50Hz 60Hz 12.3Kg IP56 1294 700 148
ZYC25 Series Fluorescent Pendant Light
Current type Power Voltage/Frequency Weight Protection Class L L1 H
ZYC25-2 20W x 2 110V/60Hz 5.5Kg IP56 692 480 127
ZYC25-2E 20W x 2 220V/50Hz 60Hz 5.5Kg IP56 692 480 127
ZYC25-2EF 20W x 2 220V/50Hz 60Hz 7.2Kg IP56 692 480 148
ZYC45-2 40W x 2 110V/60Hz 10.5Kg IP56 1294 700 127
ZYC45-2E 40W x 2 220V/50Hz 60Hz 10.6Kg IP56 1294 700 127
ZYC45-2EF 40W x 2 220V/50Hz 60Hz 11.3Kg IP56 1294 700 148
ZYC26 Series Fluorescent Pendant Light
Type Power Voltage/Frequency Lamp Holder Protection Class Weight
ZYC26-1 20W x 1 110V/60Hz G13 IP56 5.0Kg
ZYC26-2 20W x 2 220V/50Hz G13 IP56 5.5Kg
ZYC26-2E 20W x 2 220V/50Hz G13 IP56 5.5Kg
ZYC26-2EF 24W x 1 220V/50Hz G13 IP56 5.7Kg

Remark: This light adopts steel or stainless-steel frame, and the lampshade is made through the injection of polycarbonate. It has an excellent function of anti-vibration. The lamp conforms to requirement of the standard IEC92-306-1980 standard. The lamp has the features of novel appearance, small volume and light weight.

ZYC27 Series Fluorescent Pendant Light
Type Power Voltage/Frequency Lamp Holder Protection Class Weight
ZYC27-1 20W x 1 110V/60Hz G13 IP67 5.0Kg
ZYC27-2 20W x 2 220V/50Hz G13 IP67 5.5Kg
ZYC27-2E 20W x 2 220V/50Hz G13 IP67 5.5Kg
ZYC27-2E 20W x 2 + 24V/15W 220V/50Hz G13 IP67 5.5Kg

Remark: Designed for illuminating engine rooms or outside corridors of ships. Fitted with B 15d extra lampholder inside the casing for 24V 1.5W incandescent bulb.

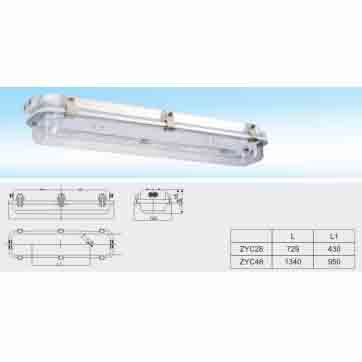

ZYC28 Series Fluorescent Pendant Light
Type Power Voltage/Frequency Lamp Holder Protection Class Weight
ZYC28-1 20W x 1 110V/60Hz G13 IP67 2.2Kg
ZYC28-1E 20W x 1 220V/50Hz G13 IP67 2.2Kg
ZYC28-2 20W x 2 110V/60Hz G13 IP67 2.7Kg
ZYC28-2E 20W x 2 220V/50Hz G13 IP67 2.7Kg
ZYC48-1 40W x 1 110V/60Hz G13 IP67 5.0Kg
ZYC48-1E 40W x 1 220V/50Hz G13 IP67 5.0Kg
ZYC48-2 40W x 2 110V/60Hz G13 IP67 5.5Kg
ZYC48-2E 40W x 2 220V/50Hz G13 IP67 5.5Kg

Dimensions:

Type L L1
ZYC28 729 430
ZYC48 1340 950
ZYC29 Series Fluorescent Pendant Light
Type Power Voltage/Frequency Lamp Holder Protection Class Weight
ZYC29-1 20W x 1 110V/60Hz G13 IP68 2.7Kg
ZYC29-1E 20W x 1 220V/50Hz G13 IP68 2.7Kg
ZYC29-2 20W x 2 110V/60Hz G13 IP68 5.0Kg
ZYC29-2E 20W x 2 220V/50Hz G13 IP68 5.0Kg

Dimensions:

Type L
ZYC29 1130
ZYC49 1820

Note: The description may be different with the product, please contact us for quotation.
