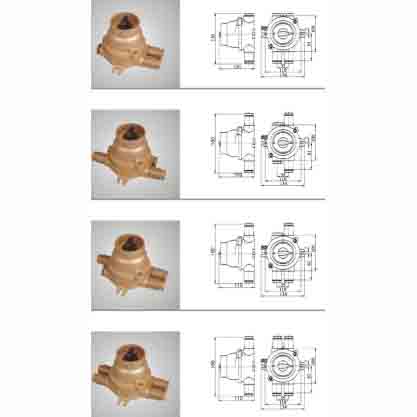

Marine Explosion-proof Switch, socket, plug And Junction-box
Remark
● Fit for electric connect, circuit through and off in ship, petroleum platform chemical industry site.
● The shell adopts precision casting, it has the feature of fine sealing function and fine electric function.
● Fit for armored cable Ø12 – Ø14.5mm.
Technical parameter
| 防护等级 Protection class | IP56 |
|---|---|
| 采用标准 Adopted standard | IEC |
| 防爆标志 Explosion-proof mark | ExeⅡ CT6 |
| 电压/电流 Voltage/current | 250V/16A |
141057
| 代号 Code | 141057 |
|---|---|
| 名称 Name | 防爆开关 explosion-proof switch |
| 型号 Type | dCH202-2 |
| 重量 Weight | 1.9kg |
| 材质 Material | 铜 copper |
141058
| 代号 Code | 141058 |
|---|---|
| 名称 Name | 防爆开关 explosion-proof switch |
| 型号 Type | dCH202-2A |
| 重量 Weight | 1.9kg |
| 材质 Material | 铜 copper |
141059
| 代号 Code | 141059 |
|---|---|
| 名称 Name | 防爆开关 explosion-proof switch |
| 型号 Type | dCH202-3 |
| 重量 Weight | 2.0kg |
| 材质 Material | 铜 copper |
141054
| 代号 Code | 141054 |
|---|---|
| 名称 Name | 防爆开关 explosion-proof switch |
| 型号 Type | dCH202-4 |
| 重量 Weight | 2.1kg |
| 材质 Material | 铜 copper |
| 防护等级 Protection class | IP56 |
|---|---|
| 采用标准 Adopted standard | IEC |
| 防爆标志 Explosion-proof mark | ExeⅡ CT6 |
| 电压/电流 Voltage/current | 250V/16A |
55165T
| 代号 Code | 55165T |
|---|---|
| 名称 Name | 防爆插头 explosion-proof plug |
| 型号 Type | dCH202-3 |
| 重量 Weight | 1.5kg |
| 材质 Material | 铜 copper |
5516L
| 代号 Code | 5516L |
|---|---|
| 名称 Name | 防爆插座 explosion-proof plug |
| 型号 Type | dCH202-1 |
| 重量 Weight | 2.6kg |
| 材质 Material | 铜 copper |
5516H
| 代号 Code | 5516H |
|---|---|
| 名称 Name | 防爆插座 explosion-proof plug |
| 型号 Type | dCH202-2 |
| 重量 Weight | 2.8kg |
| 材质 Material | 铜 copper |
5516D
| 代号 Code | 5516D |
|---|---|
| 名称 Name | 防爆插座 explosion-proof plug |
| 型号 Type | dCH202-3 |
| 重量 Weight | 2.7kg |
| 材质 Material | 铜 copper |
| Code | Name | Type | Weight | Material |
|---|---|---|---|---|
| 5106 | 防爆接线盒 explosion-proof junction-box | dCJXD201-1 | 1.1kg | 铜 copper |
| 5107 | 防爆接线盒 explosion-proof junction-box | dCJXD202-2 | 1.1kg | 铜 copper |
| 5109 | 防爆接线盒 explosion-proof junction-box | dCJXD202-3 | 1.2kg | 铜 copper |
| 5104 | 防爆接线盒 explosion-proof junction-box | dCJXD202-4 | 1.3kg | 铜 copper |
| DXJXD203-1 | 防爆接线盒 explosion-proof junction-box | dCJXD203-1 | 1.5kg | 铝 aluminium |
| DXJXD203-2 | 防爆接线盒 explosion-proof junction-box | dCJXD203-2 | 1.8kg | 铝 aluminium |
Note: The description may be different with the product, please contact us for quotation.
