10A Marine Brass Switch

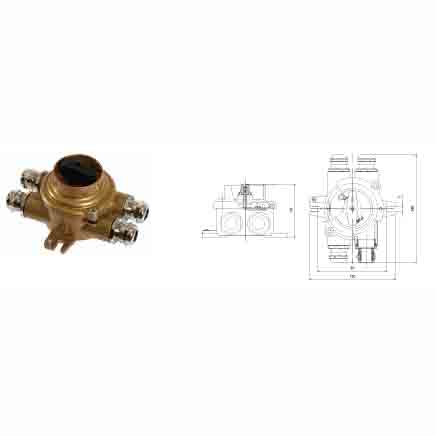

Product Image and Dimensional Diagram
[The image shows a 10A marine brass switch from multiple angles: a front – view, a side – view, and a back – view. There is also a dimensional diagram providing detailed measurements of the switch, including length, width, height, and hole – spacing dimensions.]

Applicable Scope
Suitable for ships and other places with high requirements for protection level, used for connecting and disconnecting AC/DC low – voltage electrical circuits.

Technical Specifications

Item	Detail
Standard	DIN89270, CB/T1192
Material	Brass
Protection Class	IP56
Cable Outer Diameter	φ6 – φ12

Wiring Diagram and Code Specifications

The following table lists different wiring configurations and their corresponding codes, general cable types, shield cable types, and weights:

For 2 – terminal connections

Terminal Configuration	Code	General Cable Type	Shield Cable Type	Weight
2 – 0 (assuming this means a certain connection form, as original is a bit unclear)	1133/2	H05RN – F 1×1.5	H05RR – F 1×1.5	0.8kg

For 3 – terminal connections

Terminal Configuration	Code	General Cable Type	Shield Cable Type	Weight
3 – 0	1133/3	H05RN – F 1×1.5	H05RR – F 1×1.5	1.0kg
3 – O (another form)	1133/3D	H05RN – F 1×1.5	H05RR – F 1×1.5	1.0kg

For 4 – terminal connections

Terminal Configuration	Code	General Cable Type	Shield Cable Type	Weight
4 – 0	1133/4	H05RN – F 1×1.5	H05RR – F 1×1.5	1.5kg
4 – O (another form)	1133/4D	H05RN – F 1×1.5	H05RR – F 1×1.5	1.5kg

For 5 – terminal connections

Terminal Configuration	Code	General Cable Type	Shield Cable Type	Weight
5 – 0	1133/5	H05RN – F 1×1.5	H05RR – F 1×1.5	1.8kg

Attention please: The description may be different with the product, please contact us for quotation.
