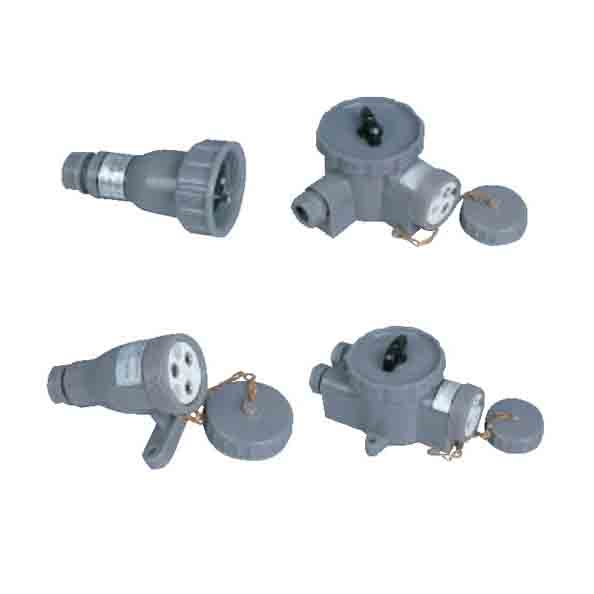

High-Performance Marine Nylon Waterproof Plug, Socket, and Socket with Integrated Switch for Marine Applications
Our Marine Nylon Waterproof Plug, Socket, and Socket with Switch are designed to meet the rigorous demands of marine environments. These products come in a variety of voltage options and weight configurations to suit different marine electrical setups. The outer diameter of the cables ranges from 14mm to 16mm, ensuring compatibility with a wide range of marine electrical systems. Below are the detailed specifications:
Technical Specifications:
Protection Rating: IP56 (ensuring high resistance to dust and water ingress)
Cable Outer Diameter: Φ14mm – φ16mm
Product Specifications:
Marine Nylon Waterproof Plug with Detailed Pin Configuration
| Pin Sketch Map | Voltage | Type | Weight | Dimension |
|---|---|---|---|---|
| 250V | CTF2-1 | 0.1kg | ||
| 250V | CTF2-2 | 0.11kg | ||
| 125V | CTF2-3 | 0.12kg | ||
| 500V | CTF3-1 | 0.11kg | ||
| 500V | CTF3-2 | 0.13kg |
Marine Nylon Waterproof Plug (Alternative Series)
| Pin Sketch Map | Voltage | Type | Weight | Dimension |
|---|---|---|---|---|
| 250V | CZF2-1 | 0.2kg | ||
| 250V | CZF2-2 | 0.21kg | ||
| 125V | CZF2-3 | 0.21kg | ||
| 500V | CZF3-1 | 0.21kg | ||
| 500V | CZF3-2 | 0.22kg |
Marine Nylon Waterproof Socket for Secure Electrical Connections
| Pin Sketch Map | Voltage | Type | Weight | Dimension |
|---|---|---|---|---|
| 250V | CZKF2-2 | 0.45kg | ||
| 125V | CZKF2-3 | 0.44kg | ||
| 500V | CZKF3-2 | 0.46kg |
Marine Nylon Waterproof Socket with Integrated Switch for Enhanced Control
| Pin Sketch Map | Voltage | Type | Weight | Dimension |
|---|---|---|---|---|
| 250V | CZKF2-4 | 0.5kg | ||
| 125V | CZKF2-5 | 0.45kg |
The CZKF2-4 Marine Nylon Waterproof Socket with Integrated Switch is a premium option for marine applications that require both waterproofing and convenient on/off control. This product combines the durability of marine-grade nylon with the functionality of an integrated switch, making it an ideal choice for marine electrical systems that demand reliability and ease of use.
Please Note: The description might be incorrect, please contact us for confirmation.
