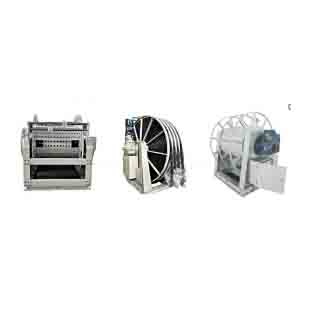

Ship Cable Reel
Instructions for Ship Cable Reel Model Compilation:
A diagram showing the structure of a ship cable reel with labels for different parts such as 1. 1 – core cable, 2. 2 – core cable, 3. 3 – core cable, 4. 4 – core cable, 5. 5 – core cable, 6. Cable drum, 7. Frame, 8. Brake device, 9. Reducer (optional), 10. Limit switch, 11. Slip – ring device, 12. Grounding.
Table of Ship Cable Reel Models and Parameters
| Serial Number | Model | Rated Voltage (V) | Rated Current (A) | Cable Size (mm) | Number of Cables (cores) | Cable Drum Type | Cable Length (m) | Driving Form |
|---|---|---|---|---|---|---|---|---|
| 1 | DFJC/W – 1 – T1 | ≤690 | 63A | 5X00X850X620 | 1 | Roller – type 1 | 100 | Manual |
| 2 | DFJC/W – 2 – T1 | ≤690 | 125A | 6X00X1000X620 | 1 | Roller – type 1 | 100 | Manual |
| 3 | DFJC/D – 1 – T1 | ≤690 | 250A | 1 | Roller – type 3 | 100 | Automatic | |
| 4 | DFJC/D – 3 – T2 | ≤690 | 500A | 3 | Roller – type 2 | 200 | Automatic | |
| 5 | DFJC/B – 3 – J1 | ≤690 | 250A | 3 | Roller – type 3 | 100 | Variable – frequency | |
| 6 | DFJC/B – 3 – 12 | ≤690 | 500A | 3 | Roller – type 3 | 200 | Variable – frequency | |
| 7 | DFJC/B – 3 – 14 | ≤690 | 1000A | 3 | Roller – type 4 | 400 | Variable – frequency |
Main Working Environment
- Ambient temperature: – 25°C – 70°C
- Ambient humidity: 90%
- Voltage fluctuation range: ±6% – ±10%, frequency fluctuation range: 5%
- Vibration frequency range: 10Hz – 60Hz, vibration amplitude: 0.475 * 0.025mm
- Maximum inclination: 22.5° in all directions
Main Functions
- Electrical control type: DFJC series ship cable reels can control the reeling and unreeling of the cable through the forward and reverse rotation of the manual or electric motor.
- The internal electrical control box mainly includes: circuit breakers, AC contactors, thermal relays, fuses, change – over switches, and terminal blocks.
- The control function can adjust the rotation direction of the cable drum through the forward and reverse change – over switch SA to control the reeling and unreeling of the cable.
