32A Marine Large Current Brass Switch

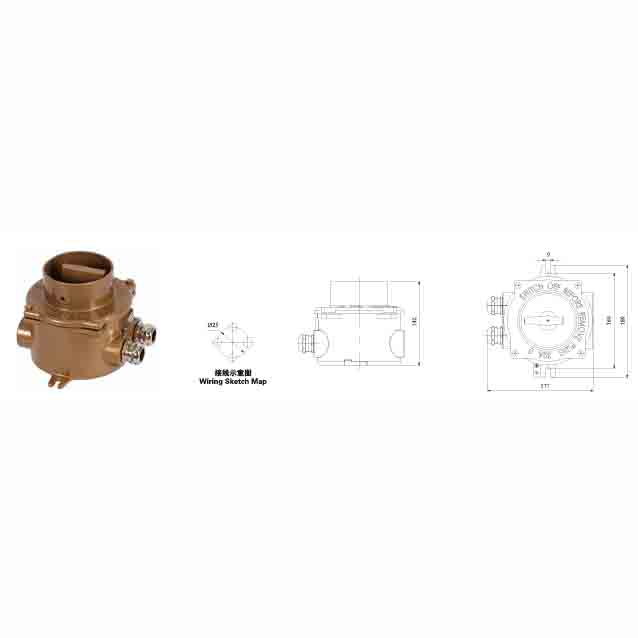

Product Image and Dimensional Diagram
[The image shows a 32A marine large – current brass switch with a front – view photo, a side – view photo, and a detailed dimensional diagram. The dimensional diagram provides precise measurements of the switch’s length, width, height, and other relevant dimensions. Additionally, there is a wiring – sketch map showing different connection configurations labeled as -O-, =O, etc.]
Applicable Scope
Suitable for ships and other places with high requirements for protection level, used for connecting and disconnecting AC/DC low – voltage electrical circuits.
Wiring Sketch Map and Technical Specifications Table
The wiring – sketch map illustrates various connection forms such as -O-, -O- I, =O, =O-, etc., which represent different ways of wiring the switch.
| Item | HH1/101 – 32/2 | HH2/105 – 32/2 | HH2/203 – 32/2 | HH3/303 – 32/2 | HH4/403 – 32/2 | HH1/101 – 32/3 | HH2/103 – 32/3 | HH2/203 – 32/3 | HH3/303 – 32/3 | HH4/403 – 32/3 |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated Voltage | AC250V | AC250V | AC250V | AC250V | AC440V/380V | AC250V | AC250V | AC250V | AC250V | AC440V/380V |
| Weight | 3.6kg | 3.75kg | 3.75kg | 3.9kg | 4.05kg | 3.6kg | 3.75kg | 3.75kg | 3.9kg | 4.05kg |
| Rated Current | 32A | |||||||||
| Protection Class | IP56 | |||||||||
| Cable Outside Diameter | Ø9 – Ø16 | |||||||||
| Material | Copper Brass | |||||||||
| Standard | IEC 60092 – 301; CB3895 – 2011 |
Attention please: The description may be different with the product, please contact us for quotation.
