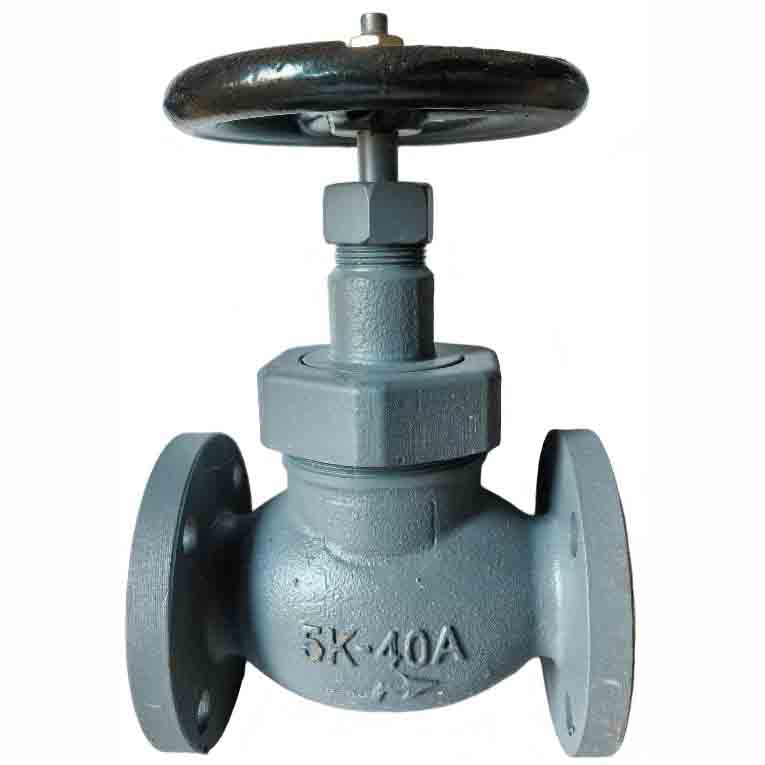

Marine Ductile Iron Globe Valve 5K
| Product Name | Code | Standard Number | Flange Spacing L (mm) | Flange Outer Diameter D (mm) | Center Distance C (mm) | Screw Hole | Weight G (kg) |
|---|---|---|---|---|---|---|---|
| Marine Ductile Iron Globe Valve (5K) | 750301 | F7321 5K15 | 100 | 80 | 60 | 4×Ф12 | 1.98 |
| Marine Ductile Iron Globe Valve (5K) | 750302 | F7321 5K20 | 110 | 85 | 65 | 4×Ф12 | 2.80 |
| Marine Ductile Iron Globe Valve (5K) | 750303 | F7321 5K25 | 120 | 95 | 75 | 4×Ф12 | 4.18 |
| Marine Ductile Iron Globe Valve (5K) | 750304 | F7321 5K32 | 140 | 115 | 90 | 4×Ф15 | 5.53 |
| Marine Ductile Iron Globe Valve (5K) | 750305 | F7321 5K40 | 160 | 120 | 95 | 4×Ф15 | 7.08 |
Attention please: The description may be different with the product, please contact us for quotation.
