DIN3202 F4 PN16 RESILIENT SEAT GATE VALVE
TECHNICAL REQUIREMENT:
- Design and Manufacture: Conform to DIN3352
- Flange dimensions: Conform to EN1092-2 PN16
- Face to Face dimensions: Conform to EN558-1 list 14, DIN3202 list F4
- Testing: Conform to EN12266-1
MATERIALS OF PARTS

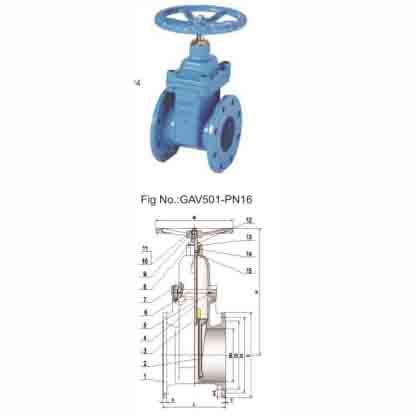

Fig No.: GAV501-PN16
| NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | BODY | EN-GJS-500-7 |
| 2 | RUBBER DISC | EPDM/NBR+DI |
| 3 | STEM NUT | ZCUAL10FE3 |
| 4 | STEM | 1CR17NI2 |
| 5 | BONNET GASKET | EPDM/NBR |
| 6 | BONNET | EN-GJS-500-7 |
| 7 | SOCKET CAP SCREW | CARBON STEEL |
| 8 | SEAL BLOCK | ZCUZN4MN3FE1 |
| 9 | HANDWHEEL | EN-GJS-500-7 |
| 10 | NUT | ZINC-PLATED CARBON STEEL |
| 11 | WASHER | ZINC-PLATED CARBON STEEL |
| 12 | DUSTPROOF SEAL RING | EPDM/NBR |
| 13 | O-RING | EPDM/NBR |
| 14 | O-RING | EPDM/NBR |
| 15 | O-RING | EPDM/NBR |
DIMENSIONS DATA (MM)
| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 150 | 170 | 180 | 190 | 210 | 230 | 250 | 270 | 290 | 310 | 330 | 350 | 390 | |
| D | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 395 | 445 | 505 | 565 | 615 | 670 | 840 |
| D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 | 460 | 515 | 565 | 620 | 770 |
| D2 | 99 | 118 | 132 | 156 | 184 | 211 | 266 | 319 | 370 | 429 | 480 | 530 | 582 | 682 |
| b | 19 | 19 | 19 | 19 | 19 | 20 | 22 | 24.5 | 26.5 | 28 | 30 | 31.5 | 35 | 36 |
| n – d | 4-19 | 4-19 | 8-19 | 8-19 | 8-23 | 8-23 | 12-23 | 12-28 | 16-28 | 16-31 | 20-31 | 20-34 | 20-37 | 24-37 |
| f | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 5 | |
| H | 226 | 265 | 288 | 320 | 364 | 410 | 502 | 596 | 681 | 810 | 905 | 1008 | 1135 | 1310 |
| W | 200 | 200 | 200 | 255 | 255 | 306 | 360 | 360 | 406 | 406 | 508 | 508 | 508 | 508 |
Attention please: The description might be incorrect, please contact us for confirmation.
