CLIP GATE VALVE OS&Y SOLID WEDGE DISC INSIDE SCREW
TECHNICAL REQUIREMENT:
- Thread: Conform to B2.1
- GAV601C Bronze Trim
- GAV601F All Iron
MATERIALS OF PARTS

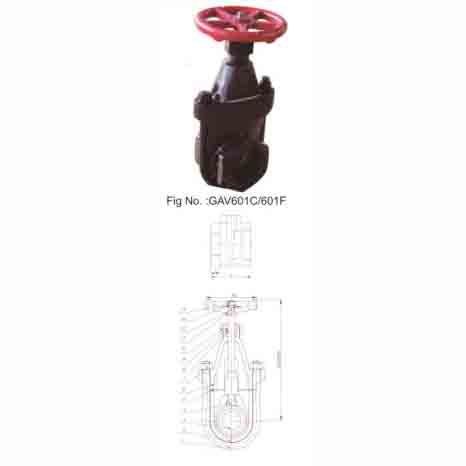

Fig No.: GAV601C/601F
| NO. | PART NAME | MATERIAL | MATERIAL STANDARD |
|---|---|---|---|
| 1 | U BOLT | STEEL | ASTM A307B |
| 2 | BODY | CAST IRON | ASTM A126B |
| 3 | WEDGE | CAST IRON | ASTM A126B |
| 4 | STEM | SS420BRASS (for GAV601C); CAST IRON (for GAV601F) | ASTM A276/ASTM B16 (for SS420BRASS); ASTM A126B (for CAST IRON) |
| 5 | GASKET | GRAPHITE | NONASBESTOS |
| 6 | BONNET | CAST IRON | ASTM A126B |
| 7 | NUTS | STEEL | ASTM A307B |
| 8 | PACKING | GRAPHITE | NONASBESTOS |
| 9 | GLAND | SS420BRASS (for GAV601C); CAST IRON (for GAV601F) | ASTM A276/ASTM B16 (for SS420BRASS); ASTM A126B (for CAST IRON) |
| 10 | GLAND FLANGE | CAST IRON | ASTM A126B |
| 11 | HANDWHEEL | CAST IRON | ASTM A126B |
| 12 | NAMEPLATE | AL | COMMERCIAL |
| 13 | WASHER | STEEL | ASTM A307B |
| 14 | NUTS | STEEL | ASTM A307B |
DIMENSIONS DATA (MM)
| PRESSURE | NPS | A | B | C | D |
|---|---|---|---|---|---|
| 125S | 2 | 298 | 98 | 102 | 22 |
| 3 | 389 | 126 | 150 | 26 | |
| 4 | 496 | 150 | 225 | 26 |
Attention please: The description might be incorrect, please contact us for confirmation.
