AWWA C515 200PSI 300PSI OS&Y GROOVED END RESILIENT SEAT GATE VALVE
TECHNICAL REQUIREMENT:
- Design and Manufacture: Conform to MSS SP – 70
- Flange dimensions: Conform to ANSI B16.1
- Face to Face dimensions: Conform to ANSI B16.10
- Testing: Conform to MSS SP – 70
- Driving mode: hand wheel, bevel gear, gear, electric
MATERIALS OF PARTS

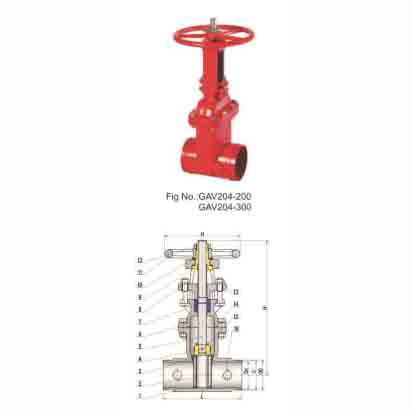

Fig No.: GAV204 – 200, GAV204 – 300
| NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A536 65 – 45 – 12 |
| 2 | RUBBER DISC | EPDM + DI |
| 3 | DISC NUT | ASTM A276 420 |
| 4 | ELASTIC CYLINDRICAL PIN | STAINLESS STEEL |
| 5 | STEM | ASTM A743 CF8M (or as specified) |
| 6 | BONNET | ASTM A536 65 – 45 – 12 |
| 7 | PACKING | FLEXIBLE GRAPHITE |
| 8 | GLAND | ASTM A536 65 – 45 – 12 |
| 9 | STEM NUT | ASTM C95800 |
| 10 | WASHER | ASTM C95800 |
| 11 | HANDWHEEL | ASTM A536 65 – 45 – 12 |
| 12 | HANDWHEEL NUT | SS304 |
| 13 | NUT | |
| 14 | BONNET GASKET | EPDM |
| 15 | O – RING | EPDM |
| 16 | PLUG SCREW | SS304 |
DIMENSIONS DATA (MM)
| NPS | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dn | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| L | 190.5 | 203.2 | 228.6 | 254 | 266.7 | 292.1 | 330.2 | 355.6 | 381 | 406.4 | 432 | 457 | 508 |
| C | 69/72 | 85 | 110 | 135/137 | 161/164 | 214 | 268 | 318 | 350 | 401 | 452 | 502 | 601 |
| OD | 73/76 | 89 | 114 | 140/141 | 165/168 | 219 | 273 | 324 | 356 | 406 | 457 | 508 | 610 |
| H | 345 | 409 | 458 | 550 | 625 | 765 | 925 | 1055 | 1190 | 1320 | 1440 | 1550 | 1850 |
| W | 183 | 253 | 253 | 356 | 356 | 366 | 445 | 445 | 508 | 558 | 610 | 640 | 640 |
Attention please: The description may be different with the goods, please check with us when order.
