AWWA C515 200PSI/300PSI OS&Y CAST IRON RESILIENT SEAT GATE VALVE
TECHNICAL REQUIREMENT:
- Design and Manufacture: Conform to AWWA C509/C515
- Flange dimensions: Conform to ANSI B16.1
- Face to Face dimensions: Conform to ANSI B16.10
- Testing: Conform to AWWA C509/C515
MATERIALS OF PARTS

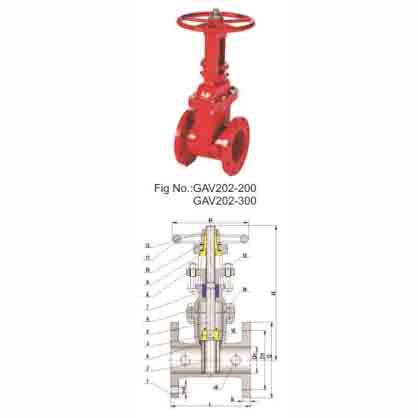

Fig No.: GAV202-200, GAV202-300
| NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A36 65-45-12 |
| 2 | RUBBER DISC | EPDM+DI |
| 3 | DISC NUT | ASTM A276 420 |
| 4 | ELASTIC CYLINDRICAL PIN | STAINLESS STEEL |
| 5 | STEM | ASTM A743 CF8M (or as specified) |
| 6 | BONNET | ASTM A36 65-45-12 |
| 7 | PACKING | FLEXIBLE GRAPHITE |
| 8 | GLAND | ASTM A36 65-45-12 |
| 9 | STEM NUT | ASTM C95800 |
| 10 | WASHER | ASTM A36 65-45-12 |
| 11 | HANDWHEEL | ASTM A36 65-45-12 |
| 12 | HANDWHEEL NUT | ASTM A36 65-45-12 |
| 13 | NUT | SS304 |
| 14 | BONNET GASKET | EPDM |
| 15 | O-RING | EPDM |
| 16 | PLUG SCREW | SS304 |
DIMENSIONS DATA (MM)
| NPS | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dn | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| L | 190.5 | 203.2 | 228.6 | 254 | 266.7 | 292.1 | 330.2 | 355.6 | 381 | 406.4 | 432 | 457 | 508 |
| D | 178 | 191 | 229 | 254 | 279 | 343 | 483 | 533 | 597 | 635 | 699 | 813 | 914 |
| D1 | 139.7 | 152.4 | 190.5 | 215.9 | 241.3 | 298.5 | 431.8 | 482.6 | 539.8 | 577.9 | 635 | 749.3 | 863.6 |
| b | 17.5 | 19 | 23.9 | 25.4 | 28.6 | 31.8 | 35 | 36.6 | 39.7 | 42.9 | 47.7 | 53.9 | 60 |
| n-d | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | 8-25 | 12-25 | 12-29 | 16-32 | 16-32 | 20-35 | 20-38 | 24-41 |
| H | 345 | 409 | 458 | 550 | 625 | 765 | 925 | 1055 | 12-29 (likely a typo, should be a number) | 16-32 (likely a typo, should be a number) | 1320 | 1550 | 1850 |
| W | 183 | 253 | 253 | 356 | 356 | 366 | 445 | 445 | 508 | 558 | 610 | 640 | 640 |
Note: In the “H” row for NPS 14 and 16, the original data seems to have some non – numerical or misplaced values (“12-29”, “16-32”). The above presentation keeps the original content, but in practical use, these may need to be verified and corrected.
Attention please: The description may be different with the goods, please check with us when order.
