AWWA C515 200PSI 300PSI NRS GROOVED END RESILIENT SEAT GATE VALVE
TECHNICAL REQUIREMENT:
- Design and Manufacture: Conform to AWWA C515
- Groove dimensions: Conform to AWWA C606
- Face to Face dimensions: Conform to ANSI B16.10
- Testing: Conform to AWWA C515
MATERIALS OF PARTS

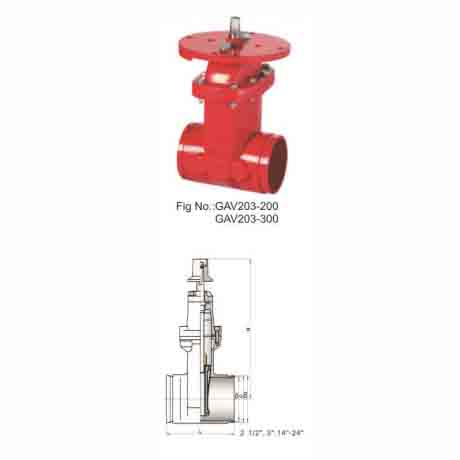

Fig No.: GAV203-200, GAV203-300
| NO. | PART NAME | MATERIAL |
|---|---|---|
| 1 | BODY | ASTM A536 65-45-12 |
| 2 | RUBBER DISC | EPDM+DI |
| 3 | STEM NUT | ASTM C95800 |
| 4 | STEM | ASTM A743 CF8M (or as specified) |
| 5 | BONNET GASKET | EPDM |
| 6 | BONNET | ASTM A536 65-45-12 |
| 7 | BOLT | ZINC-PLATED CARBON STEEL |
| 8 | NUT | ZINC-PLATED CARBON STEEL |
| 9 | SQUARE OPERATING NUT | ASTM A536 65-45-12 |
| 10 | PLUG SCREW | SS304 |
DIMENSIONS DATA (MM)
| NPS | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dn | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| L | 190.5 | 203.2 | 228.6 | 254 | 266.7 | 292.1 | 330.2 | 355.6 | 381 | 406.4 | 432 | 457 | 508 |
| C | 69 | 84.9 | 110 | 135/137 | 161/164 | 214 | 268 | 318 | 350 | 401 | 452 | 502 | 601 |
| OD | 73 | 88.9 | 114 | 140/141 | 165/168 | 219 | 273 | 324 | 356 | 406 | 457 | 508 | 610 |
| H | 329 | 352 | 371 | 378 | 423 | 513 | 610 | 698 | 895 | 985 | 1095 | 1225 | 1435 |
Attention please: The description may be different with the goods, please check with us when order.
