MSS SP-70 CLASS 125 NRS CAST IRON GATE VALVE

MSS SP-70 CLASS 125 NRS CAST IRON GATE VALVE

Place of Origin: Made In China
Specification: Please contact us for details.
Click here to send inquiry via whatsapp

Category:

MSS SP-70 CLASS 125 NRS CAST IRON GATE VALVE

TECHNICAL REQUIREMENT:

  • Design and Manufacture: Conform to MSS SP-70
  • Flange dimensions: Conform to ANSI B16.1
  • Face to Face dimensions: Conform to ANSI B16.10
  • Testing: Conform to MSS SP-70
  • Driving mode: hand wheel, bevel gear, gear, electric

MATERIALS OF PARTS

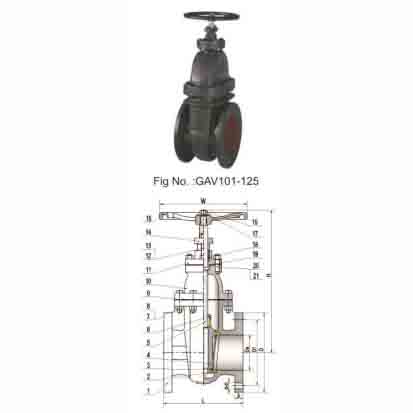

Fig No.: GAV101-125

NO. PART NAME MATERIAL
1 BODY ASTM A126 B
2 SEAT RING ASTM B62
3 WEDGE RING ASTM B62
4 WEDGE ASTM A126 B
5 STEM ASTM A16 HG/CR13
6 STEM NUT MN-BRASS
7 BOLT CARBON STEEL
8 NUT CARBON STEEL
9 GASKET GRAPHITE+STEEL
10 BONNET ASTM A126 B
11 STUFFING BOX ASTM A126 B
12 BOLT CARBON STEEL
13 NUT CARBON STEEL
14 PACKING GLAND ASTM A126 B
15 HANDWHEEL DUCTILE IRON
16 NUT CARBON STEEL
17 WASHER CARBON STEEL
18 PACKING GRAPHITE
19 WASHER GRAPHITE+STEEL
20 BOLT CARBON STEEL
21 NUT CARBON STEEL

DIMENSIONS DATA (MM)

NPS 2 1/2 3 4 5 6 8 10 12 14 16 18 20 24 30 36 42 48
Dn 65 76 102 127 152 203 254 305 356 406 457 508 610 762 914 1067 1219
L 177.8 190.5 228.6 254 266.7 292.1 330.2 355.6 381 406.4 457.2 508 609.6 711.2 812.8 914.4 1016
D 152 178 191 229 254 279 343 483 533 597 635 699 813 984 1168 1346 1511
D1 120.7 139.7 154 190.5 214.3 241.3 298.5 431.8 482.6 539.8 577.9 635 749.3 901.7 1079.5 1244.6 1409.7
b 15.8 17.5 19 23.9 25.4 28.5 30.2 31.8 35 36.6 39.7 42.9 47.7 53.9 60 67 70
n-d 4-19 4-19 4-19 8-19 8-22 8-22 8-25 12-25 12-29 16-32 16-32 20-35 20-38 24-41 24-48 28-54 32-60
H 312 325 346 410 485 520 625 733 881 1002 1126 1210 1335 1525 2140 2365 2770
W 200 200 255 306 366 360 406 508 558 610 640 640 700 800 900 900 900

Attention please: The description might be incorrect, please contact us for confirmation.
