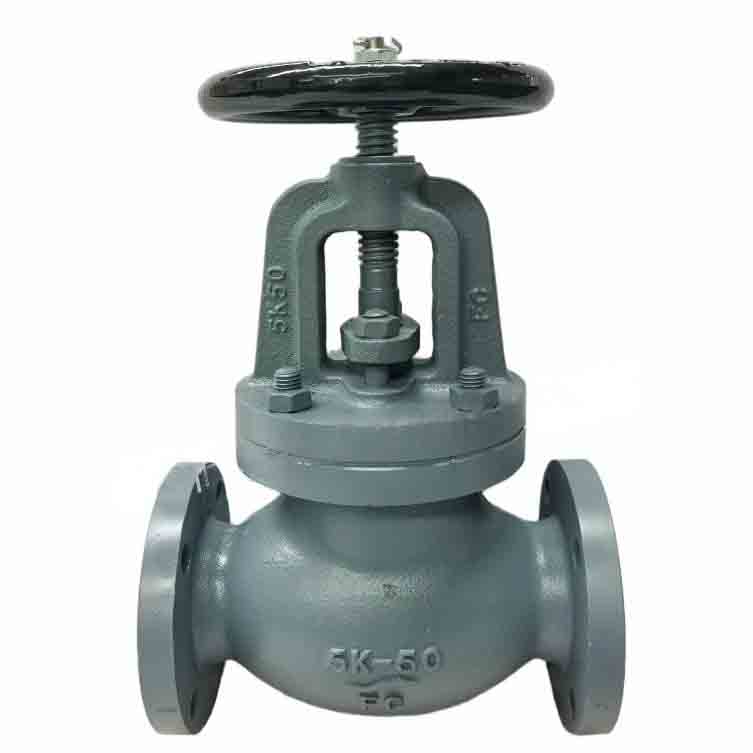

Marine Cast Iron 5K Straight-through Stop Valve
| Code | Standard Number | Flange Distance L (mm) | Flange Outer Diameter D (mm) | Center Distance C (mm) | Bolt Holes (mm) | Weight G (kg) |
|---|---|---|---|---|---|---|
| 750201 | F7305 5K50 | 210 | 130 | 105 | 4×Ф15 | 14.70 |
| 750202 | F7305 5K65 | 250 | 155 | 130 | 4×Ф15 | 21.30 |
| 750203 | F7305 5K80 | 280 | 180 | 145 | 4×Ф19 | 27.70 |
| 750204 | F7305 5K100 | 340 | 200 | 165 | 8×Ф19 | 40.80 |
| 750205 | F7305 5K125 | 410 | 235 | 200 | 8×Ф19 | 57.60 |
| 750206 | F7305 5K150 | 480 | 265 | 230 | 8×Ф19 | 80.30 |
| 750207 | F7305 5K200 | 570 | 320 | 280 | 8×Ф23 | 139.00 |
| 750208 | F7305 5K250 | 740 | 385 | 345 | 12×Ф23 | 246.00 |
| 750209 | F7305 5K300 | 840 | 430 | 390 | 12×Ф23 | 377.00 |
Attention please: The description may be different with the product, please contact us for quotation.
