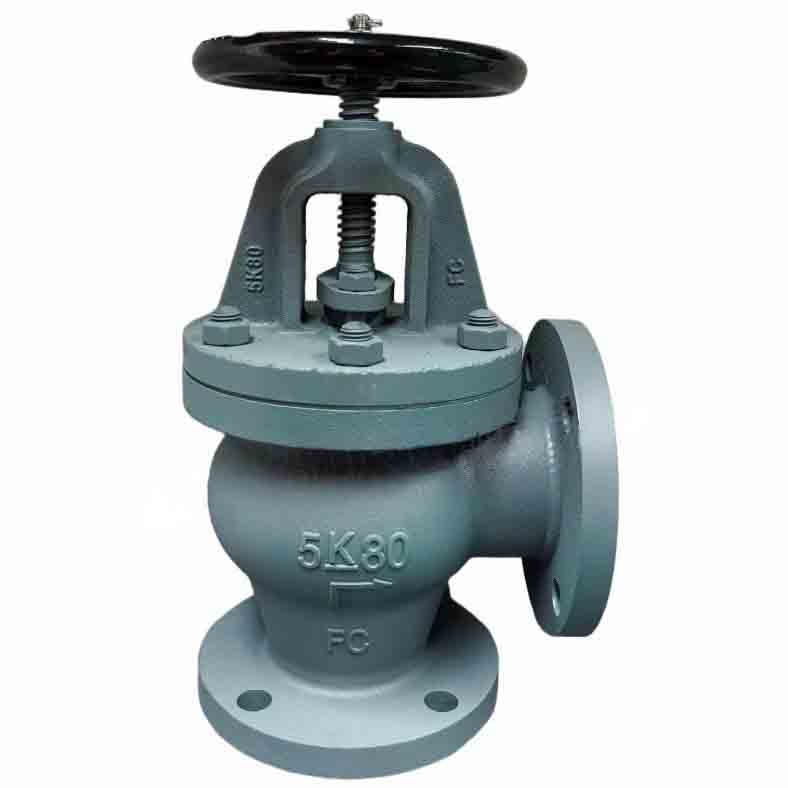

Marine Cast Iron 5K Angle (Right-Angle) Stop Valve
| Code | Standard Number | Flange Distance L (mm) | Flange Outer Diameter D (mm) | Center Distance C (mm) | Bolt Holes (mm) | Weight G (kg) |
|---|---|---|---|---|---|---|
| 750216 | F7306 5K50 | 100 | 130 | 105 | 4×Ф15 | 12.90 |
| 750217 | F7306 5K65 | 115 | 155 | 130 | 4×Ф15 | 18.20 |
| 750218 | F7306 5K80 | 130 | 180 | 145 | 4×Ф19 | 23.40 |
| 750219 | F7306 5K100 | 150 | 200 | 165 | 8×Ф19 | 33.70 |
| 750220 | F7306 5K125 | 170 | 235 | 200 | 8×Ф19 | 46.20 |
| 750221 | F7306 5K150 | 190 | 265 | 230 | 8×Ф19 | 63.40 |
| 750222 | F7306 5K200 | 220 | 320 | 280 | 8×Ф23 | 105.00 |
| 750223 | F7306 5K250 | 275 | 385 | 345 | 12×Ф23 | 176.00 |
| 750224 | F7306 5K300 | 310 | 430 | 390 | 12×Ф23 | 243.00 |
This table provides a comprehensive overview of the specifications for each model of the Marine Cast Iron 5K Angle (Right-Angle) Stop Valve.
Attention please: The description may be different with the product, please contact us for quotation.
