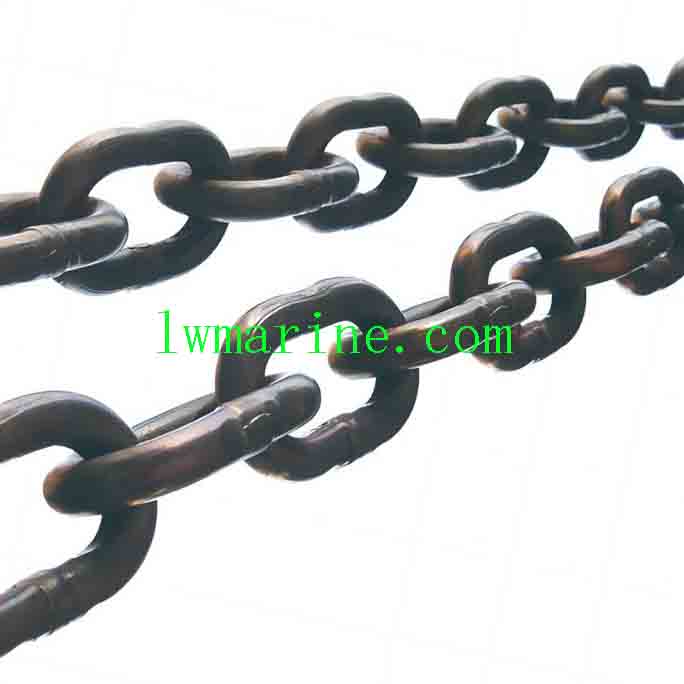

China Marine Anchor Chain – Comprehensive Product Details for Marine Industry
Top – Notch Anchor Chains Tailored for Marine Applications
We are a leading supplier of premium – quality marine anchor chain in China, offering fast – track delivery services to meet your urgent requirements. Our delivery options are designed to provide maximum convenience:
- On – board Delivery Service: If your vessel is docked at a port in China, we can directly deliver the anchor chains to your ship, ensuring a seamless and efficient supply process.
- Global Shipping Solutions: We offer worldwide shipping to any designated port, enabling you to receive our high – grade anchor chains no matter where your vessel is located.
Certifications & Quality Guarantee
Our marine anchor chains are backed by a comprehensive set of certifications and quality assurance measures:
- Class Certifications: We hold certifications from renowned classification societies including ABS (American Bureau of Shipping), LR (Lloyd’s Register), BV (Bureau Veritas), DNV (Det Norske Veritas), NK (Nippon Kaiji Kyokai), GL (Germanischer Lloyd), KR (Korean Register of Shipping), IRS (Indian Register of Shipping), and CCS (China Classification Society). These certifications are a testament to the high – quality standards and compliance of our products.
- Material Grades: Our anchor chains are made from high – tensile steel grades CM490 and CM690, which offer exceptional strength and durability, ensuring reliable performance in the harsh marine environment.
- Chain Grades: We provide anchor chains in grades K2 and K3, catering to different load – bearing requirements and application scenarios.
Marine Anchor Chain Technical Specifications
- Chain Diameter Range: Our anchor chains come in a wide range of diameters from 12.5mm to 132mm, allowing you to select the most suitable size based on your vessel’s specifications and anchoring needs.
- Stud Type: The chains feature flush – welded studs, which enhance the overall strength and integrity of the chain, providing better resistance to deformation and breakage.
- Surface Finish: The surface of our anchor chains is coated with bituminous paint, which offers excellent corrosion resistance, protecting the chains from the corrosive effects of seawater and extending their service life.
Joining Methods for Marine Anchor Chains
We offer a variety of joining methods to ensure secure and reliable connections between chain links:
- Standard Chain Joining Forms: These are the conventional methods of joining chain links, providing a basic yet effective connection for general – purpose applications.
- Kenter Shackle Connection: This is a detachable linking method that allows for easy assembly and disassembly of the chain. It is ideal for situations where flexibility in chain length adjustment is required.
- D – Type Joining Shackle Configuration: The D – type shackle provides a strong and stable connection, ensuring the integrity of the chain under heavy loads.
Detailed Parameters of Marine Anchor Chains
| Chain Diameter (mm) | Proof Load (Grade 2, kN) | Proof Load (Grade 3, kN) | Breaking Load (Grade 2, kN) | Breaking Load (Grade 3, kN) | Minimum Weight per 27.5m (kg) |
|---|---|---|---|---|---|
| 12.5 | 66 | – | 92 | – | 98 |
| 14 | 82 | – | 116 | – | 119 |
| 16 | 107 | 150 | 150 | 216 | 160 |
| 17.5 | 127 | 179 | 179 | 256 | 190 |
| 19 | 150 | 211 | 211 | 301 | 225 |
| 20.5 | 175 | 244 | 244 | 349 | 265 |
| 22 | 200 | 280 | 280 | 401 | 300 |
| 24 | 237 | 332 | 332 | 476 | 360 |
| 26 | 278 | 389 | 389 | 556 | 420 |
| 28 | 321 | 449 | 449 | 642 | 490 |
| 30 | 368 | 514 | 514 | 735 | 565 |
| 32 | 417 | 583 | 583 | 833 | 635 |
| 34 | 468 | 655 | 655 | 937 | 720 |
| 36 | 523 | 732 | 732 | 1050 | 800 |
| 38 | 581 | 812 | 812 | 1160 | 895 |
| 40 | 640 | 896 | 896 | 1280 | 995 |
| 42 | 703 | 981 | 981 | 1400 | 1100 |
| 44 | 769 | 1080 | 1080 | 1540 | 1200 |
| 46 | 837 | 1170 | 1170 | 1680 | 1320 |
| 48 | 908 | 1280 | 1280 | 1810 | 1440 |
| 50 | 981 | 1370 | 1370 | 1960 | 1560 |
| 52 | 1060 | 1480 | 1480 | 2110 | 1675 |
| 54 | 1140 | 1590 | 1590 | 2270 | 1820 |
| 56 | 1220 | 1710 | 1710 | 2430 | 1935 |
| 58 | 1290 | 1810 | 1810 | 2600 | 2075 |
| 60 | 1380 | 1940 | 1940 | 2770 | 2220 |
| 62 | 1470 | 2060 | 2060 | 2940 | 2365 |
| 64 | 1560 | 2190 | 2190 | 3130 | 2550 |
| 66 | 1660 | 2310 | 2310 | 3300 | 2695 |
| 68 | 1750 | 2450 | 2450 | 3500 | 2890 |
| 70 | 1840 | 2580 | 2580 | 3690 | 3030 |
| 73 | 1990 | 2790 | 2790 | 3990 | 3290 |
| 76 | 2150 | 3010 | 3010 | 4300 | 3555 |
| 78 | 2260 | 3160 | 3160 | 4500 | 3755 |
| 81 | 2410 | 3380 | 3380 | 4820 | 4035 |
| 84 | 2580 | 3610 | 3610 | 5160 | 4395 |
| 87 | 2750 | 3850 | 3850 | 5500 | 4760 |
| 90 | 2920 | 4090 | 4090 | 5840 | 5005 |
| 92 | 3040 | 4260 | 4260 | 6080 | 5200 |
| 95 | 3230 | 4510 | 4510 | 6440 | 5570 |
| 97 | 3350 | 4680 | 4680 | 6690 | 5760 |
| 100 | 3530 | 4940 | 4940 | 7060 | 6130 |
| 102 | 3660 | 5120 | 5120 | 7320 | 6505 |
| 105 | 3860 | 5390 | 5390 | 7700 | 6885 |
| 107 | 3980 | 5570 | 5570 | 7960 | 7140 |
| 111 | 4250 | 5940 | 5940 | 8480 | 7715 |
| 114 | 4440 | 6230 | 6230 | 8890 | 8085 |
| 117 | 4650 | 6510 | 6510 | 9300 | 8445 |
| 120 | 4860 | 6810 | 6810 | 9720 | 9110 |
| 122 | 5000 | 7000 | 7000 | 9990 | 9240 |
| 124 | 5140 | 7200 | 7200 | 10280 | 9700 |
| 127 | 5350 | 7490 | 7490 | 10710 | 10040 |
| 130 | 5570 | 7800 | 7800 | 11140 | 10420 |
| 132 | 5720 | 8000 | 8000 | 11420 | 10910 |
The description/sizes may be different with goods, please check with us when order.
