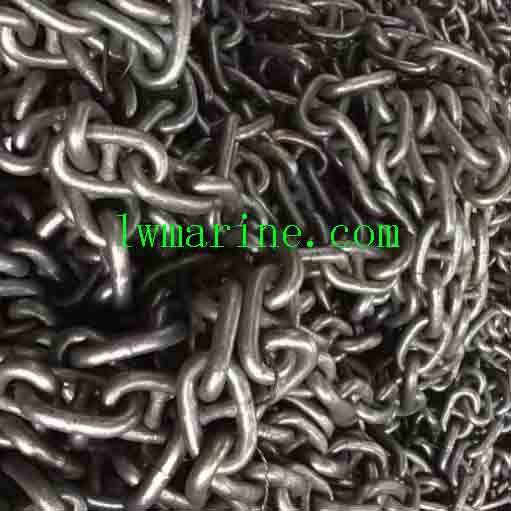

Grade 2 Open Link Anchor Chain

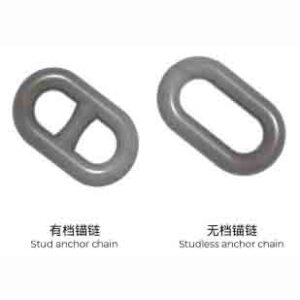

Our Grade 2 Open Link (Studless) Anchor Chain provides a practical balance of strength and weight savings, making them ideal for:
-
Small to medium vessels
-
Temporary mooring systems
-
Secondary marine applications
-
Industrial and construction uses
Key Features:
✔ 20% lighter than equivalent stud link chains
✔ Compatible with larger shackles (no end links required)
✔ Cost-effective solution for less demanding applications
✔ Hot-dip galvanized for corrosion resistance
Grade 2 vs. Grade 3 Comparison
| Parameter | Grade 2 | Grade 3 |
|---|---|---|
| Proof Load | Standard | +25% Higher |
| Breaking Load | Standard | +30% Higher |
| Best For | Light/medium duty | Heavy-duty applications |
| Cost | More economical | Premium option |
Parameters:
| Proof Test Load (KN) | Breaking Test Load (KN) | Nominal Diameter (mm) | Weight (kg/27.5m) |
| 9.3 | 18.6 | 6 | 21.45 |
| 12.6 | 25.2 | 7 | 29.15 |
| 18.5 | 33 | 8 | 38.23 |
| 20.9 | 41.8 | 9 | 48.4 |
| 25.8 | 51.6 | 10 | 59.68 |
| 31.2 | 62.4 | 11 | 72.33 |
| 41.2 | 82.6 | 12.5 | 93.23 |
| 51 | 101.9 | 14 | 116.88 |
| 66.2 | 132.3 | 16 | 139.43 |
| 78.89 | 157.78 | 17.5 | 178.35 |
| 93.6 | 187.2 | 19 | 217.68 |
| 108.64 | 217.27 | 20.5 | 229.14 |
| 125.4 | 250.9 | 22 | 264.49 |
| 149.9 | 298.9 | 24 | 341.82 |
| 175.4 | 350.8 | 26 | 369.94 |
| 203.8 | 406.7 | 28 | 427.04 |
| 234.2 | 467.5 | 30 | 490.98 |
| 265.6 | 531.2 | 32 | 559.65 |
| 299.9 | 599.8 | 34 | 671.52 |
| 336.1 | 672.3 | 36 | 707.85 |
| 374.4 | 748.7 | 38 | 788.98 |
| 414.5 | 829.1 | 40 | 869.36 |
| 457.7 | 915.3 | 42 | 959.3 |
| 502.7 | 999.6 | 44 | 1111.25 |
| 548.8 | 1097 | 46 | 1152.07 |
| 597.8 | 1195.6 | 48 | 1256.26 |
| 648.8 | 1293.6 | 50 | 1360.41 |
| 697.63 | 1395.26 | 52 | 1485.61 |
| 752.33 | 1504.66 | 54 | 1648.08 |
| 809.09 | 1618.18 | 56 | 1715.97 |
| 867.91 | 1735.82 | 58 | 1844.5 |
| 928.8 | 1857.6 | 60 | 1973.29 |
| 991.75 | 1983.5 | 62 | 2101.56 |
| 1056.77 | 2113.54 | 64 | 2298.47 |
| 1123.85 | 2247.7 | 66 | 2398.1 |
| 1192.99 | 2385.98 | 68 | 2522.88 |
| 1264.2 | 2528.4 | 70 | 2697.65 |
Note: The description might be incorrect, please contact us for confirmation.
