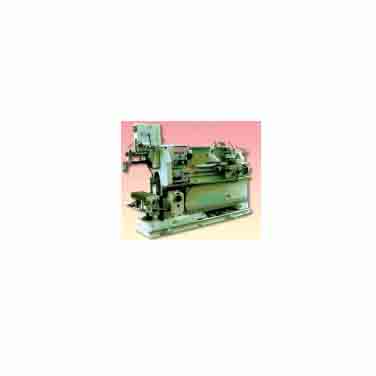

QN6004 Multi-function Machine Tool
Performance Parameters
- Power: 3kW
- Weight: ~2000kg
Turning (Lathe):
- Maximum Turning Length: 1000mm
- Maximum Swing Diameter over Bed: 670mm
- Maximum Swing Diameter over Cross Slide: 420mm
- Maximum Swing Diameter over Tool Post: 250mm
- Spindle Taper: MT. No5
- Spindle Bore: 35mm
- Spindle Speed Range: 20~1000 r/min (12 steps)
- Longitudinal Feed Range: 0.042~1mm/r (33 steps)
- Transverse Feed Range: 0.021~0.5 mm/r (33 steps)
- Metric Threads (Number/Range): 23, 0.25~6
- Imperial Threads (Number/Range): 26, 2~32
Drilling:
- Maximum Drilling Diameter: 38mm
- Spindle Taper: MT. No4
- Spindle Axial Travel: 100mm
- Worktable Working Area (Width x Length): 200mm x 660mm
- Worktable Travel (Transverse/Longitudinal): 152mm / 275mm
Planing:
- Maximum Planing Length: 280mm
- Longitudinal Feed Range: 0.15~0.77mm/stroke (5 steps)
- Maximum Planing Height: 200mm
Milling:
- Maximum Milling Cutter Diameter (Face Milling Cutter, End Milling Cutter): 63mm, 16mm
- Spindle Axial Travel: 100mm
- Spindle Speed Range: 140~785r/min (6 steps)
- Worktable Working Area (Width x Length): 200mm x 660mm
- Worktable Travel (Transverse/Longitudinal): 152mm / 275mm
Horizontal Milling:
- Horizontal Milling Spindle Speed Range: 90~500r/min (6 steps)
- Worktable Working Area (Width x Length): 200mm x 660mm
- Worktable Travel (Transverse/Longitudinal): 152mm / 275mm
Machine Tool Model Selection Table
| No. | Name | Model | Processing Length | Swing Diameter | Power kW | Remarks |
|---|---|---|---|---|---|---|
| 1 | Small Universal Lathe | JM610/280 | 610mm | 280mm | 0.75 | |
| 2 | Small Universal Lathe | JM815/310 | 815mm | 310mm | 0.75 | |
| 3 | One-meter Universal Lathe | JM6136 | 1000mm | 360mm | 1.5 | |
| 4 | One-meter Universal Lathe | JM6140A | 1000mm | 400mm | 2.0/2.4 | |
| 5 | One-meter Five-function Lathe | JM6140B | 1500mm | 400mm | 2.0/2.4 | |
| 6 | Small Multi-function Lathe | JMD610/280 | 610mm | 280mm | 0.75 | Added drilling 16mm, milling 16mm functions |
| 7 | Small Multi-function Lathe | JMD815/310 | 815mm | 310mm | 0.75 | Added drilling 20mm, milling 20mm functions |
| 8 | Heavy-duty Multi-function Machine Tool | QN6004 | 1500 | 420 | 3 | Contains turning, drilling, milling, planing, boring functions |
Note: The description may be different with the product, please contact us for quotation.
