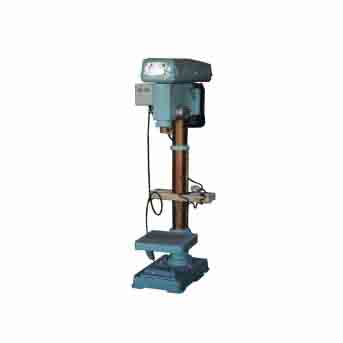

Marine Drilling Machine Z5132
Performance Parameters
- Drilling Machine Model: Z5132
- Maximum Drilling Diameter: φ32
- Spindle Lifting Stroke: 130mm
- Distance from Spindle Center to Column Surface: 230mm
- Spindle Taper (Morse Taper): MT4
- Spindle Speed: 9 levels (160, 230, 380, 540, 800, 950, 1200, 1420, 1880)
- Worktable Dimensions:
- Round Table: φ420
- Square Table: 340X360
- Worktable Lifting Stroke: 590mm
- Base Worktable Dimensions: 260 x 260mm
- Distance from Spindle End Face to Worktable Surface: 160~750mm
- Distance from Spindle End Face to Base Table Surface: 990mm
- Worktable Rotation Angle around Column: 360°
- Motor: 1500W, 940rpm
- Overall Dimensions: 89X39X156cm
- Net Weight: ~190kg
Other Drilling Machine Model Selection Table
| No. | Name | Model | Max Drilling Diameter | Equipment Height | Power kW | Remarks |
|---|---|---|---|---|---|---|
| 1 | Bench Drilling Machine | Z512 | 12mm | 1037mm | 0.37 | |
| 2 | Bench Drilling Machine | Z516 | 16mm | 1037mm | 0.55 | |
| 3 | Light Vertical Drilling Machine | ZQ4125 | 25mm | 1110mm | 0.75 | |
| 4 | Heavy Vertical Drilling Machine | JZ25 | 25mm | 1560mm | 1.1 | |
| 5 | Light Vertical Drilling Machine | ZQ4132 | 32mm | 1110mm | 0.75 | |
| 6 | Heavy Vertical Drilling Machine | JZ32 | 32mm | 1560mm | 1.5 |
Note: The description may be different with the product, please contact us for quotation.
