Dry Spark Arrestor And Silencer of Diesel Engine

Dry Spark Arrestor And Silencer of Diesel Engine

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:
GHX1 Dry Spark Arrestor And Silencer of Diesel Engine

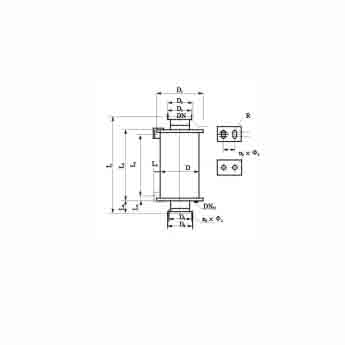

Table 3

Parameter Type GHX1-100 GHX1-150 GHX1-200 GHX1-250 GHX1-300 GHX1-350 GHX1-400 GHX1-500
DN 100 150 200 250 300 350 400 500
D 325 457 612 650 700 800 900 1000
D1 341 473 628 666 716 820 920 1020
D2 190 240 295 365 430 480 530 635
L 1104 1300 1600 1900 2100 2400 3000 3600
L1 964 1264 1564 1700 1950 2850 3450
L2 68 68 68 75 75 75 75
L3 854 1100 1400 1700 1850 2100 2700 3300
L4 100 100 100 100 100 105 105 105
L5 60 60 60 60 60 65 65 65
L6 340 340 340 340 340 345 345 345
L7 30 30 30 30 30 35 35 35
R 12.5 12.5 12.5 12.5 12.5 12.5 12.5 12.5
n1 x Φ1 8 x 16 12 x 16 12 x 16 14 x 16 14 x 22 16 x 22 16 x 22 20 x 22
n2 x Φ1 8 x 16 12 x 16 12 x 16 14 x 16 14 x 22 16 x 22 16 x 22 20 x 22
n3 x Φ1 2 x 25 2 x 25 2 x 25 2 x 25 2 x 25 2 x 25
Weight (kg) -77 -140 -250 -300 -350 -500 -700 -930

Note: The description may be different with the product, please contact us for quotation.
