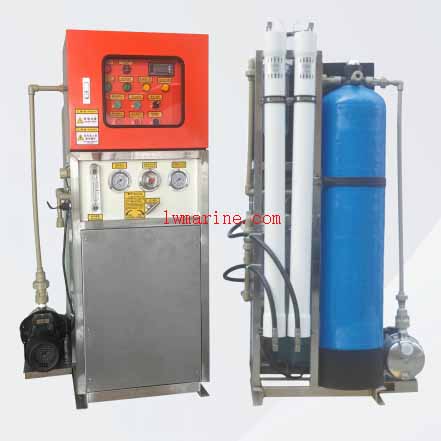

China Small Desalination Plant
Product parameters Available Treatment
- Main features: Small size, easy installation, convenient operation and maintenance.
- Fresh Water Output: 3 tons per day
- Size: LWH = 500mm570mm1350mm
- Weight: ≈150kg (dry weight)
- Power Consumption: 1.5kW
- System recovery rate: ≈15% (depending on temperature and water quality)
- Power supply: AC380V / 50Hz / 3φ
- Electric control protection grade: IP56
- Product color: Primary color
- Material composition: SUS316 stainless steel
- Main accessories: High-pressure pump adopts GIANT brand imported from the United States; American Dow brand reverse osmosis membrane
- Effluent water quality: In accordance with GB5749-2006 drinking water quality standard
System function
- Over-pressure protection for the output water from high pressure pump. When the high pressure pump outlet pressure exceeds 6.5mpa, the equipment will stop automatically and show sound and light alarm.
- Under-pressure protection when the inlet pressure of the high-pressure pump is insufficient. When the water inlet pressure of the high-pressure pump is lower than 0.05mpa due to insufficient pre-treatment water supply, it will automatically stop and send an audible and visual alarm.
- Equipped with manual multi-way valve, the sand filter can be easily and quickly filtered, backwashed and forward washed as required.
- The alarm system is equipped with manual confirmation and sound elimination functions.
- Equipped with reverse osmosis membrane cleaning system, the reverse osmosis membrane components can be cleaned physically, replaced with concentrated water, cleaned chemically and injected with protective liquid.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
