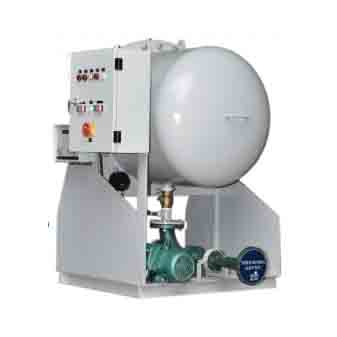

BHD Seawater Desalination Device Plate Type
Main Equipment Features:
- Simple and compact design, easy and convenient for installation.
- Manufactured using high-quality titanium plates and other seawater-resistant corrosion materials, ensuring reliable quality and long service life.
- Produces high-quality freshwater for ship net water systems and can be directly used for boiler makeup water.
- The equipment is economical in terms of maintenance.
- Depending on the heat source and seawater temperature, the product series covers a wide processing range (3T/D~60T/D).
The BHD seawater desalination device (plate type) utilizes the waste heat from the main engine jacket cooling water as the heat source and seawater as the cooling medium. It employs the vacuum flash evaporation method to convert seawater into high-quality freshwater, supplementing the shortage of freshwater on ships. The evaporator and condenser plates of this device are designed using titanium plates, characterized by durability and low maintenance costs.
The device consists of an evaporator, condenser control system, and salinity meter. The freshwater pump transports the freshwater to the freshwater tank, creating a vacuum environment through ejection. It can also be equipped with an anti-scaling device (for high-temperature heat source water above 75°C). All components are modularized for convenient installation.
Series Product Processing Capacity
| Model | BHD-5 | BHD-10 | BHD-15 | BHD-20 | BHD-30 | BHD-40 | BHD-50 |
|---|---|---|---|---|---|---|---|
| Freshwater Production (m³/d) | 3 – 5 | 8 – 12 | 12 – 17 | 17 – 22 | 28 – 36 | 40 – 48 | 50 – 60 |
| Freshwater Salinity (PPM) | <10 | <10 | <10 | <10 | <10 | <10 | <10 |
Attention please: The description may be different with the goods, please check with us when order.
