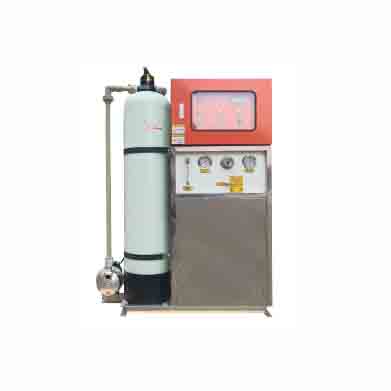

Small scale sea water desalination treatment
Features and Advantages
- High Quality RO Membrane, Desalinating Rate ≥99.2%
- High Pressure Pump, from US or Germany.
- Rust-proof and corrosion resistance: 316LSS
- Lifespan: 15-20 years
- Smart design, easy to use
- Auto-Protection Design
- Available to: 220V/50HZ 380V/50HZ 440V/60HZ
- Quality of outlet water: Meet the Requirement of China National Drinking Water Health Standard <GB 5749-2006>
Available Treatment
| Model | Output Water (Ton/Day) | Desalinating Rate (%) | TDS (mg/L) | Operation Pressure (kPa) | Power Consumption (KW) | Net Weight (kg) | Size (LxWxH) mm |
|---|---|---|---|---|---|---|---|
| RDA-FSH03 | 3 | 99.2 | < 700 | 3.5-5.5 | 1.5 | 150 | 500×570×1350 |
| RDA-FSH05 | 5 | 99.2 | < 700 | 3.5-5.5 | 2.2 | 400 | 910×500×1540 |
| RDA-FSH10 | 10 | 99.2 | < 700 | 3.5-5.5 | 5.5 | 600 | 1520×780×1835 |
| RDA-FSH20 | 20 | 99.2 | < 700 | 3.5-5.5 | 10 | 900 | 1520×830×2025 |
| RDA-FSH30 | 30 | 99.2 | < 700 | 3.5-5.5 | 15 | 1200 | 2440×1000×2120 |
Production Procedure
Sea Water → Feeding Pump → Multi-Filter → Precision Filter → High Pressure Pump → RO mainframe → Fresh Water
Available Treatment
Model: RDA-FSH15
Main Features: compact structure, generous; Easy to operate and maintain.
Fresh Water Output: 5 tons per day
Size: LWH=910mm500mm1540mm
Weight: 260KG (dry weight)
Power Consumption: 2.2 KW
System recovery rate: >20% (depending on temperature and water quality)
Power supply: AC380V 50 Hz/3φ
Note: The description might be incorrect, please contact us for confirmation.
