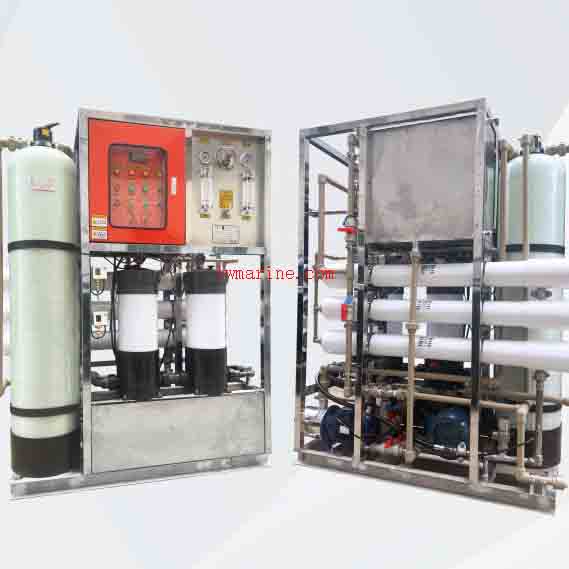

Sea water desalting plant
Product parameters Available Treatment
- Fresh water production: 10 tons per day
- Dimensions: LWH = 1520mm800mm1920mm
- Weight: ≈600Kg (dry weight)
- System power: 5.5KW
- System recovery rate: ≈33% (视温度和水质而定/depending on temperature and water quality)
- Power supply: AC380V / 50Hz / 3φ
- Effluent water quality: Conforms to GB5749-2006 living drinking water quality standard
- Electric control protection grade: IP56
- Main components: The high-pressure pump adopts the original imported AR brand from Italy, with 316L material; the reverse osmosis membrane is made by Dow
System function
- Equipped with a touch screen human-machine interface, which is beautiful and generous, with simple operation, and features online display of operation and faults.
- Output water quality: Meets the national drinking water standard .
- Over-pressure protection for the output water from the high-pressure pump. When the high-pressure pump outlet pressure exceeds 6.5mpa, the equipment will stop automatically and show sound and light alarm.
- Under-pressure protection when the inlet pressure of the high-pressure pump is insufficient. When the water inlet pressure of the high-pressure pump is lower than 0.05mpa due to insufficient pre-treatment water supply, it will automatically stop and send an audible and visual alarm.
- Equipped with a manual multi-way valve, which allows for convenient filtering, backwashing, and forward washing of the sand filter as required.
- The alarm system has the function of manual confirmation and silencing.
- Equipped with a reverse osmosis membrane cleaning system, which can perform physical cleaning, concentrated water replacement, chemical cleaning, and injection of protective fluid for the reverse osmosis membrane components.
Attention please: The description may be different with the goods, please contact us for confirmation.
