China AC – 14 HHP Anchor
Product Diagram

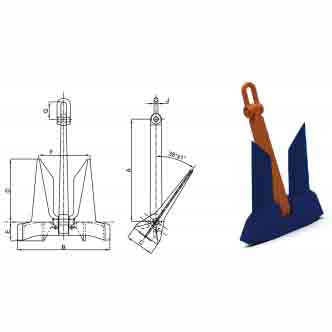

The image includes a technical drawing of the AC – 14 HHP anchor at the top, showing a side – view and a top – view with labeled dimensions A, B, C, D, E, F, along with a small 3D – like illustration of the anchor on the right – hand side.
Specification Tables
First Table
| Nominal Weight (KG) | A (mm) | D (mm) | F (mm) | C (mm) | E (mm) | B (mm) |
|---|---|---|---|---|---|---|
| 30 | 491 | 440 | 136 | 299 | 185 | 236 |
| 45 | 590 | 529 | 164 | 359 | 99 (likely a data entry error, but kept as is) | 283 |
| 75 | 677 | 605 | 188 | 411 | 122 | 324 |
| 94 | 718 | 643 | 199 | 437 | 130 | 344 |
| 113 | 745 | 666 | 207 | 452 | 135 | 357 |
| 135 | 821 | 737 | 228 | 500 | 143 | 394 |
| 180 | 904 | 811 | 251 | 550 | 157 | 434 |
| 225 | 974 | 874 | 270 | 593 | 169 | 468 |
| 270 | 1035 | 929 | 287 | 630 | 180 | 497 |
| 315 | 1090 | 978 | 302 | 663 | 189 | 524 |
| 360 | 1139 | 1022 | 316 | 694 | 198 | 547 |
| 428 | 1194 | 1071 | 331 | 727 | 206 | 574 |
| 495 | 1251 | 1122 | 347 | 762 | 216 | 602 |
| 585 | 1360 | 1221 | 378 | 828 | 236 | 654 |
| 675 | 1398 | 1254 | 387 | 851 | 242 | 672 |
| 765 | 1483 | 1304 | 404 | 885 | 264 | 698 |
| 855 | 1520 | 1363 | 423 | 925 | 267 | 729 |
| 968 | 1590 | 1425 | 440 | 968 | 275 | 764 |
| 1080 | 1631 | 1462 | 451 | 993 | 282 | 784 |
| 1193 | 1660 | 1490 | 465 | 1011 | 287 | 798 |
| 1305 | 1761 | 1580 | 488 | 1072 | 305 | 846 |
| 1440 | 1795 | 1610 | 497 | 1093 | 311 | 862 |
| 1575 | 1855 | 1665 | 514 | 1130 | 321 | 892 |
Second Table
| Nominal Weight (KG) | A (mm) | D (mm) | F (mm) | C (mm) | E (mm) | B (mm) |
|---|---|---|---|---|---|---|
| 1710 | 1900 | 1705 | 526 | 1157 | 329 | 913 |
| 1845 | 1940 | 1741 | 538 | 1182 | 336 | 933 |
| 1980 | 1977 | 1774 | 548 | 1203 | 342 | 950 |
| 2138 | 2016 | 1809 | 559 | 1227 | 349 | 969 |
| 2295 | 2089 | 1874 | 579 | 1272 | 362 | 1004 |
| 2475 | 2150 | 1929 | 596 | 1309 | 373 | 1033 |
| 2655 | 2201 | 1975 | 610 | 1340 | 382 | 1057 |
| 2835 | 2253 | 2022 | 624 | 1372 | 390 | 1083 |
| 2970 | 2293 | 2064 | 633 (likely a data error, but kept as is) | 1395 (likely a data error, but kept as is) | 396 (likely a data error, but kept as is) | 1104 (likely a data error, but kept as is) |
| 3038 | 2302 | 2066 | 638 | 1402 | 399 | 1107 |
| 3240 | 2352 | 2110 | 652 | 1432 | 407 | 1130 |
| 3443 | 2400 | 2154 | 665 | 1462 | 415 | 1154 |
| 3668 | 2451 | 2200 | 680 | 1493 | 424 | 1178 |
| 3839 | 2501 (likely a data error, but kept as is) | 2245 (likely a data error, but kept as is) | 695 (likely a data error, but kept as is) | 1519 (likely a data error, but kept as is) | 434 (likely a data error, but kept as is) | 1204 (likely a data error, but kept as is) |
| 3938 | 2510 | 2252 | 696 | 1529 | 434 | 1207 |
| 4194 | 2554 (likely a data error, but kept as is) | 2301 (likely a data error, but kept as is) | 716 (likely a data error, but kept as is) | 1564 (likely a data error, but kept as is) | 449 (likely a data error, but kept as is) | 1234 (likely a data error, but kept as is) |
| 4208 | 2549 | 2303 | 711 | 1563 | 444 | 1234 |
| 4278 | 2574 (likely a data error, but kept as is) | 2333 (likely a data error, but kept as is) | 721 (likely a data error, but kept as is) | 1584 (likely a data error, but kept as is) | 454 (likely a data error, but kept as is) | 1249 (likely a data error, but kept as is) |
| 4500 | 2624 | 2355 | 727 | 1598 | 454 | 1261 |
| 4838 | 2688 | 2412 | 745 | 1637 | 465 | 1292 |
| 5175 | 2749 | 2467 | 762 | 1674 | 476 | 1321 |
| 5513 | 2808 | 2520 | 778 | 1710 | 486 | 1350 |
| 5850 | 2864 | 2570 | 794 | 1744 | 496 | 1376 |
| 6225 | 2923 | 2623 | 810 | 1780 | 506 | 1405 |
| 6525 | 2970 | 2665 | 823 | 1808 | 514 | 1428 |
| 6975 | 3042 | 2730 | 843 | 1853 | 537 | 1492 |
| 7425 | 3160 (likely a data error, but kept as is) | 2837 (likely a data error, but kept as is) | 876 (likely a data error, but kept as is) | 1925 (likely a data error, but kept as is) | 567 (likely a data error, but kept as is) | 1548 (likely a data error, but kept as is) |
| 8325 | 3221 | 2890 | 919 | 2016 | 602 | 1626 |
| 19500 | 4278 | 3839 | 1186 | 2605 | 740 | 2056 |
