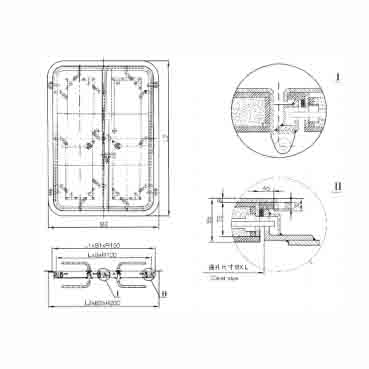

A60 WATERTIGHT DOUBLE-LEAF STEEL DOOR
262.YHS—056
SUITABLE FOR ACCOMMODATIONS WITH A60 FIRE REPAIR ROOF AND WEATHERTIGHT REQUIREMENTS, PASSED THE FIRE TEST HELD BY SHANGHAI FAR EAST FIRETESTING CENTER WITH THE TEST REPORT NO. FT04160.
| NO. | NOMINAL SIZE
B×L×R100 |
CUTOUT IN STEEL WALL
B1×L1×R150 |
EXTERNAL SIZE
B2×L2×R200 |
LEAF THICKNESS |
|---|---|---|---|---|
| 1 | 1000×1400 | 1100×1500 | 1200×1600 | 95 |
| 2 | 1200×1600 | 1300×1700 | 1400×1800 | 95 |
| 3 | 1400×1600 | 1500×1700 | 1600×1800 | 95 |
| 4 | 1400×1700 | 1500×1800 | 1600×1900 | 95 |
| 5 | 1400×1800 | 1500×1900 | 1600×2000 | 95 |
| 6 | 1600×1600 | 1700×1700 | 1800×1800 | 95 |
| 7 | 1600×1800 | 1700×1900 | 1800×2000 | 95 |
| 8 | 1600×2000 | 1700×2100 | 1800×2200 | 95 |
IDENTIFICATION EXAMPLE:
A60 WEATHERTIGHT DOUBLE-LEAF STEEL DOOR WITH CLEAR SIZE OF 1600×2000
A60 WEATHERTIGHT DOUBLE-LEAF STEEL DOOR 1600×2000 262.YHS-056
Note: The description may be different with the product, please contact us for quotation.
