10A Marine Nylon Socket

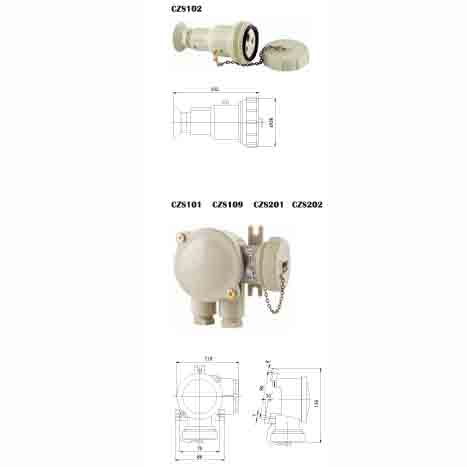

Product Main Image and Dimensional Diagram for CZS102
[The image shows a CZS102 10A marine nylon socket with a front – view photo, a side – view photo, and a detailed dimensional diagram. The dimensional diagram provides precise measurements of the socket’s length, width, height, and other relevant dimensions. There is also a chain attached to the socket in the photos.]
Other Product Models (CZS101, CZS109, CZS201, CZS202, CZS209) Images and Dimensional Diagrams
[For each of the models CZS101, CZS109, CZS201, CZS202, and CZS209, there are front – view photos and side – view dimensional diagrams showing the structure and measurements of the respective sockets.]
Technical Specifications Common to All Models
| Item | Detail |
|---|---|
| Standard | DIN89262, CB3411 – 1992 |
Gland Illustration and Technical Details Table for All Models
The plug – pin diagrams show different terminal connection forms such as O, -O, O-, -O-, =O, O=. The following table lists the corresponding details for each form across different models:
| Terminal Configuration | Voltage | Code | Type (for different models) | Weight |
|---|---|---|---|---|
| O | 24V | 1141/FS/CZS | CZS101 – 1, CZS109 – 1, CZS201 – 1, CZS202 – 1, CZS209 – 1 | 0.2kg (for CZS102 related in previous part, here for these models it varies as below) 0.30kg (for most of these models under this config) |
| 125V | 1141/FS/CZS | Same as above model – type list | 0.30kg | |
| 250V | 1141/FS/CZS | Same as above model – type list | 0.30kg | |
| 380V/440V | 1141/FS/CZS | Same as above model – type list | 0.30kg (for some), 0.50kg (for CZS101 – 5 etc. in this config) | |
| -O | 24V | 1141/R/FS | CZS101 – 1, CZS109 – 1, etc. (similar model – type coverage as above) | 0.30kg |
| 125V | 1141/R/FS | Same model – type list | 0.30kg | |
| 250V | 1141/R/FS | Same model – type list | 0.30kg | |
| 380V/440V | 1141/R/FS | Same model – type list | 0.50kg | |
| O- | 24V | 1141/D/FS | Corresponding model – types | 0.31kg |
| 125V | 1141/D/FS | Corresponding model – types | 0.31kg | |
| 250V | 1141/D/FS | Corresponding model – types | 0.31kg | |
| 380V/440V | 1141/D/FS | Corresponding model – types | 0.51kg | |
| -O- | 24V | 1141/2/FS | Relevant model – types | 0.31kg |
| 125V | 1141/2/FS | Relevant model – types | 0.31kg | |
| 250V | 1141/2/FS | Relevant model – types | 0.31kg | |
| 380V/440V | 1141/2/FS | Relevant model – types | 0.51kg | |
| =O | 24V | 1141/2R/FS | Corresponding model – types | 0.31kg |
| 125V | 1141/2R/FS | Corresponding model – types | 0.31kg | |
| 250V | 1141/2R/FS | Corresponding model – types | 0.31kg | |
| 380V/440V | 1141/2R/FS | Corresponding model – types | 0.51kg | |
| O= | Similar as above structure for different voltages and codes 1141/2R/FS | Corresponding model – types | 0.31kg (for lower voltages), 0.51kg (for 380V/440V) |
Attention please: The description may be different with the product, please contact us for quotation.
