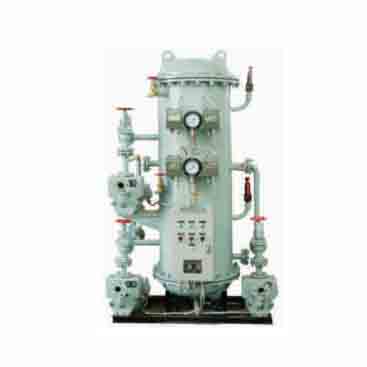

ZYG(S) Series Sea Water &Freshwater Combined Hydrophore
Application
This series of combined sea and fresh water hydrophore is suitable for water supply systems of various types of ships’ sea water and fresh water piping systems. The cylinder is divided into upper and lower layers, integrating seawater tank, fresh water tank, pump, valve and pipeline. Modular units, compact structure, easy installation and maintenance, beautiful appearance, the most ideal water supply unit.
-
Common Base
-
Water Pump
-
Stop Check Valve
-
Charging Valve
-
Pressure Controller
-
Pressure Gauge
-
Name Plate
-
Safety Valve
-
Drain Valve
① Sea Water Inlet
② Fresh Water Inlet
③ Sea Water Outlet
④ Fresh Water Outlet
See Table 1 for specifications and parameters of the combined hydrophore.
Table 1
| Model | Capacity m³ | Working Pressure MPa | Type of Pump | Motor Power kw | Weight kg | Remark |
|---|---|---|---|---|---|---|
| ZYG(S)-0.2 | 0.1/0.1 | 0.4MPa | 1WZ-0.9 | 1.5 | 483 | |
| ZYG(S)-0.4 | 0.2/0.2 | 0.4MPa | 1.5CWX-2 | 2.2 | 654 |
See the figure and table 2 for outline and installation dimensions
Table 2
| Model | D | A | B | B1 | h1 | h2 | h3 | H |
|---|---|---|---|---|---|---|---|---|
| ZYG(S)-0.2 | 500 | 1050 | 724 | 330 | 900 | 313 | 520 | 1440 |
| ZYG(S)-0.4 | 550 | 1100 | 724 | 330 | 1270 | 313 | 580 | 2100 |
Note: The electric control box also can be installed on the bulkhead near the main body.
Note: The description may be different with the product, please contact us for quotation.
