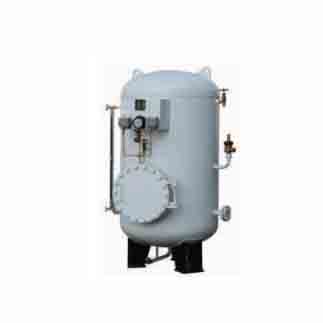

YLG Series Marine Hydrophore
Application
This series of hydrophore is designed and manufactured according to CB/T4482-2018 standard. It is applicable to the water supply system of fresh water pipe system and sanitary water pipe system on ships and drilling platforms.
See the figure and table below for outline, installation and interface dimensions
| Type | Capacity m³ | Design Pressure MPa | Working Pressure MPa | DN | A | B | B1 | C | d | d1 | h1 | h2 | h3 | h4 | D | D1 | L | H | Weight kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0.12 | 0.6 | 0.44 | 400 | 542 | 622 | 330 | Φ18 | 470 | 257 | 3/4″ | 310 | 1200 | 127 | |||||
| A | 0.2 | 0.6 | 0.44 | 500 | 708 | 734 | 394 | Φ20 | 596 | 280 | DN25 | 325 | 1250 | 170 | |||||
| A | 0.3 | 0.6 | 0.44 | 600 | 798 | 834 | 444 | Φ20 | 600 | 302 | 3/4″ | 370 | 1380 | 215 | |||||
| B | 0.5 | 0.6 | 0.44 | 700 | 910 | 929 | 574 | Φ25 | 830 | 307 | DN32 | 425 | 1580 | 284 | |||||
| B | 1.0 | 0.7 | 0.44 | 900 | 1100 | 1237 | 696 | Φ25 | 950 | 440 | DN40 | 1″ | 525 | 1880 | 365 | ||||
| B | 0.5 | 0.44 | 0.44 | 700 | 910 | 929 | 574 | Φ490 | Φ25 | 450 | 1337 | DN32 | 3/4″ | 425 | 1660 | 301 | |||
| B | 1.0 | 0.44 | 0.44 | 900 | 1100 | 1237 | 696 | Φ630 | Φ25 | 520 | 1592 | DN40 | 1″ | 525 | 1990 | 401 | |||
| C | 1.5 | 0.44 | 0.44 | 1000 | 1146 | 1338 | 752 | Φ700 | Φ25 | 570 | 1925 | DN40 | 1″ | 570 | 2370 | 554 | |||
| C | 2.0 | 0.44 | 0.44 | 1200 | 1400 | 1547 | 861 | Φ840 | Φ25 | 600 | 1776 | DN50 | 1″ | 600 | 2270 | 654 | |||
| C | 3.0 | 0.44 | 0.44 | 1200 | 1400 | 1547 | 861 | Φ840 | Φ25 | 600 | 2659 | DN50 | 1″ | 600 | 3160 | 813 |
Note: The description may be different with the product, please contact us for quotation.
