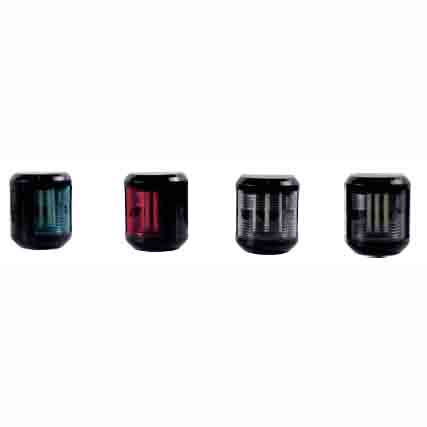

Yacht Navigation Signal Light
LED
Fit for the ships with the length less than 12M as lamp signal liaison when night navigation.
| CXH1-4P | CXH2-4P | CXH3-4P | CXH4-4P | |
|---|---|---|---|---|
| The scope of application | Starboard light | Port light | Masthead light | Stern light |
| Name | ||||
| Type | ||||
| Model | CXH1-4P | CXH2-4P | CXH3-4P | CXH4-4P |
| Rated Voltage | 12-24V | 12-24V | 12-24V | 12-24V |
| Power | 5W LED | 5W LED | 5W LED | 5W LED |
| Color | Green | Red | Clear Transparent | Clear Transparent |
| Level Arc | 112.5° | 112.5° | 225° | 135° |
| Visibility | 2n.m | 2n.m | 5n.m | 2n.m |
| Protection Class | IP56 | IP56 | IP56 | IP56 |
| Cable outside diameter | Φ10 – Φ12 | Φ10 – Φ12 | Φ10 – Φ12 | Φ10 – Φ12 |
| Installation method | Wall type | Wall type | Wall type | Wall type |
| Ambient temperature | -30℃～+55℃ | -30℃～+55℃ | -30℃～+55℃ | -30℃～+55℃ |
| Lamp body material | Engineering plastic | Engineering plastic | Engineering plastic | Engineering plastic |
| Lampshade material | PC | PC | PC | PC |
| Weight | 0.3KG | 0.3KG | 0.3KG | 0.3KG |
Attention please: The description may be different with the product, please contact us for quotation.
