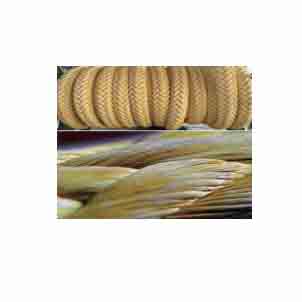

XCLINE Rope
General Description
XCLINE Xiangchuan ultra-high-strength ropes are mainly used in the fields of shipping, shipping and marine engineering. These ropes are easy to operate, it will not rotate, it have good wear resistance and high strength. They are made of eight-strand or twelve-strand ingots. Weaved in pairs.
Technology Comparison
Chart Legend:
-
MBL: Minimum Breaking Load
-
Elongation: Elongation
-
Firstload: First use
-
Return: Return
-
Used: Normal use
(Chart axes: X-axis = Elongation[%], Y-axis = MBL[%])
Main performance
-
Material: Ultra high strength PP Xiangchuan fiber
-
Construction: 8 or 12 strands plaited
-
Application: Marine fishing, Offshore
-
Colour of Rope: White
-
Specific gravity: Density 0.92 floating
-
Melting Point: 165°C
-
Abrasion Resistance: Medium
-
U.V. Resistance: Medium
-
Temperature resistance: 70°C max continuous
-
Dry & wet conditions: Wet strength equals dry strength
-
Range of use: Fishing, inland shipping, merchant, navy, industry, mooring
-
Coil length: 220m
-
Coil length: 10% lower
-
Weight and length tolerance: 5%
-
Other sizes available upon request
Parameter Table
| DIA (mm) | DIA (inch) | CIR (inch) | WT (KGS/100M) | WT (LBS/100FT) | B/S (TON) | B/S (KN) |
|---|---|---|---|---|---|---|
| 24 | 15/16 | 3 | 28 | 18.5 | 10.08 | 106 |
| 28 | 1-1/8 | 3-1/2 | 39 | 26 | 14.4 | 142 |
| 32 | 1-1/4 | 4 | 51 | 34 | 18.3 | 180 |
| 36 | 1-7/16 | 4-1/2 | 63 | 42 | 22.5 | 225 |
| 40 | 1-9/16 | 5 | 78 | 52 | 27.5 | 270 |
| 44 | 1-3/4 | 5-1/2 | 96 | 66 | 32.6 | 320 |
| 45 | 1-25/32 | 5-5/8 | 100 | 66 | 34.2 | 335 |
| 48 | 1-7/8 | 6 | 113 | 75 | 38.7 | 379 |
| 50 | 2 | 6-1/4 | 122 | 80 | 40.8 | 401 |
| 52 | 2-1/16 | 6-1/2 | 133 | 88 | 45 | 441 |
| 55 | 2-5/32 | 6-7/8 | 149 | 98 | 49 | 480 |
| 56 | 2-1/4 | 7 | 154 | 102 | 51 | 499 |
| 60 | 2-3/8 | 7-1/2 | 176 | 116 | 58 | 568 |
| 64 | 2-1/2 | 8 | 200 | 132 | 65 | 637 |
| 65 | 2-9/16 | 8-1/16 | 204 | 135 | 68 | 660 |
| 68 | 2-11/16 | 8-1/2 | 228 | 150 | 73 | 715 |
| 70 | 2-3/4 | 8-11/16 | 239 | 158 | 79.5 | 779 |
| 72 | 2-7/8 | 9 | 251 | 166 | 83 | 813 |
| 75 | 3 | 9-3/8 | 278 | 180 | 91 | 891 |
| 80 | 3-5/32 | 10 | 313 | 207 | 102 | 990 |
| 85 | 3-3/8 | 10-1/2 | 352 | 232 | 110 | 1078 |
| 88 | 3-7/16 | 11 | 378 | 250 | 123 | 1205 |
| 90 | 3-9/16 | 11-1/8 | 393 | 260 | 127 | 1244 |
| 95 | 3-3/4 | 11-3/4 | 438 | 289 | 139 | 1362 |
| 96 | 3-13/16 | 12 | 448 | 296 | 142 | 1389 |
| 100 | 3-15/16 | 12-1/2 | 486 | 320 | 156 | 1528 |
| 104 | 4-3/32 | 13 | 523 | 345 | 167 | 1636 |
| 112 | 4-7/16 | 14 | 610 | 403 | 193 | 1892 |
| 120 | 4-3/4 | 15 | 702 | 463 | 225 | 2205 |
Other sizes can be customized
Note: The description may be different with the product, please contact us for quotation.
