Wheelhouse Gastight Sliding Door
Wheelhouse Gastight Sliding Door
CB/T3722-1995 C
Suitable for various vessels with low combustion point like LPG & offshores.

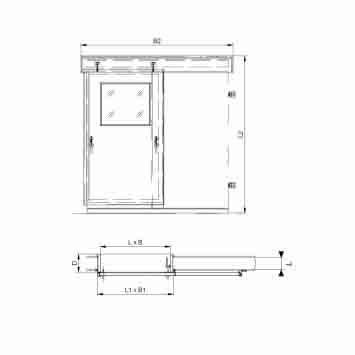

| Type | Nominal size L×B | Cutout in steel wall L1×B1 | External size L2×B2 | Lining thickness T | Frame depth D | Opening | Weight kg | ||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | |||||||
| A Stainless steel |
1700 × 750 | 1785 × 835 | 2250 × 1860 | Up to buyer’s choice | T+50 | Left L Right R |
56 | 42 | 40 |
| B Aluminium |
1700 × 900 | 1785 × 985 | 2250 × 2160 | Up to buyer’s choice | T+50 | Left L Right R |
62 | 48 | 46 |
| C Steel frame, aluminium leaf |
1800 × 900 | 1885 × 985 | 2350 × 2160 | Up to buyer’s choice | T+50 | Left L Right R |
66 | 52 | 50 |
| 1800 × 1000 | 1885 × 1085 | 2350 × 2360 | Up to buyer’s choice | T+50 | Left L Right R |
72 | 58 | 56 |
Identification example
Wheelhouse gastight sliding door with clear size of AL1800×900, frame depth of 200mm, stainless steel, left sliding;
Wheelhouse gastight sliding door AL1800×900-200 CB/T3722-1995 C.
Note: The description may be different with the product, please contact us for quotation.
