Weathertight Steel Door
Weathertight Steel Door
GB/T3477-2008
Used for the doorway of superstructure above freeboard deck or deck house.
Door class & application
| Class | Application |
|---|---|
| A | First deck above free board |
| B | Second deck above free board |
| C | Third deck above free board |
| D | Forth deck above free board |
Door type
| Type code | AF | AY | BF | BY | CF | CY | DF | DY |
|---|---|---|---|---|---|---|---|---|
| Name | Class A square angle | Class A cycle angle | Class B square angle | Class B cycle angle | Class C square angle | Class C cycle angle | Class D square angle | Class D cycle angle |
Note: Φ250 fixed light available for class C & D, coded as ‘G’.

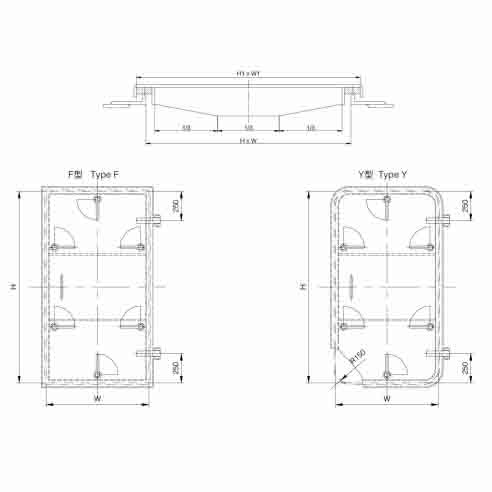

Door section
| Leaf thickness t | Shefter size h1×t1 | Frame high h | Frame material |
|---|---|---|---|
| 8 | 50 × 6 | 35 | L100x63x10 |
| 6 | 32 × 4 | 35 |
Dimensions
| Type | Door hole size H×W | Leaf size H1×W1 | Cutout in steel wall | Leaf thickness | Qty of clip | Weight kg ≈ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AF,BF,CF,DF | AY,BY,CY,DY | Class A, B | Class C | Class D | Class A, B, C, D | Class A, B, C, D | Door thickness mm | Leaf thickness | ||||||
| ≤80 | ＞80 | ≤80 | ＞80 | |||||||||||
| 1050 | 1000 × 500 | 1071 × 571 | 1100 × 600 R150 | 1100 × 600 R150 | 6 | — | 4 | — | 4 | 6 | 3 | 22 | 30 | |
| 1260 | 1200 × 600 | 1271 × 671 | 1300 × 700 R150 | 1300 × 700 R150 | 6 | — | 4 | — | 4 | 6 | 3 | 30 | 41 | |
| 1460 | 1400 × 600 | 1471 × 671 | 1500 × 700 R150 | 1500 × 700 R150 | 6 | 8 | 4 | 6 | 4 | 6 | 3 | 35 | 55 | 77 |
| 1475 | 1400 × 750 | 1471 × 821 | 1500 × 850 R150 | 1500 × 850 R150 | 6 | 8 | 4 | 6 | 4 | 6 | 3 | 45 | 66 | 92 |
| 1490 | 1400 × 900 | 1471 × 971 | 1500 × 1000 R150 | 1500 × 1000 R150 | — | 8 | — | 6 | 4 | 8 | 4 | 60 | 77 | 107 |
| 1660 | 1600 × 600 | 1671 × 671 | 1700 × 700 R150 | 1700 × 700 R150 | 6 | 8 | 6 | 6 | 6 | 3 | 63 | 87 | ||
| 1675 | 1600 × 750 | 1671 × 821 | 1700 × 850 R150 | 1700 × 850 R150 | — | 8 | — | 6 | 6 | 6 | 3 | — | 75 | 104 |
| 1690 | 1600 × 900 | 1671 × 971 | 1700 × 1000 R150 | 1700 × 1000 R150 | — | 8 | — | 6 | 6 | 8 | 4 | — | 88 | 121 |
| 1860 | 1800 × 600 | 1871 × 671 | 1900 × 700 R150 | 1900 × 700 R150 | — | — | — | — | 6 | — | 3 | — | 70 | |
| 1875 | 1800 × 750 | 1871 × 821 | 1900 × 850 R150 | 1900 × 850 R150 | — | — | — | — | 6 | — | 3 | — | 76 | |
| 1890 | 1800 × 900 | 1871 × 971 | 1900 × 1000 R150 | 1900 × 1000 R150 | — | — | — | — | 6 | — | 4 | — | 97 |
Identification example
Weathertight steel door, Type A square angle, leaf thickness of 8mm, stiffener thickness of 65×9mm, clear size of 1600×600mm, right outward opening.
Weathertight steel door AF1660-8-65×9-5.1 GB/T3477-2008.
Note: Weathertight steel door CY with circular angle, leaf thickness of 6mm, stiffener thickness of (50×5)mm, watertight steel door with circular fixed window, clear size of 1400×750mm, left outward opening.
Weathertight steel door CYG1475-4-50×5-6.1 GB/T3477-2008.
Note: The description may be different with the product, please contact us for quotation.
