WEATHERTIGHT SINGLE-LEAF STEEL DOOR FOR SHIP
GB/T3477—1996
262.YHS—007
USED FOR DOORWAY OF SUPERSTRUCTURE ABOVE FREEBOARD DECK OR DECK HOUSE TO MEET ISO 6042-1998
1. CLASS OF DOOR AND USED FOR STATION
表格
| CLASS | USED FOR STATION |
|---|---|
| A | FORWARD BULKHEAD ON THE FIRST DECK ABOVE FREEBOARD (FROM AFT, PERPENDICULAR TO 0.1L~0.7L) |
| B | FORWARD BULKHEAD ON THE SECOND DECK ABOVE FREEBOARD (FROM AFT, PERPENDICULAR TO 0.1L~0.7L), AFT & SIDE BULKHEAD ON THE FIRST DECK |
| C | FORWARD BULKHEAD ON THE THIRD DECK ABOVE FREEBOARD (FROM AFT, PERPENDICULAR TO 0.2L~0.6L), AFT & SIDE BULKHEAD ON THE SECOND DECK |
| D | BULKHEAD ON THE FOURTH DECK AND UP ABOVE FREEBOARD, AFT & SIDE BULKHEAD ON THE THIRD DECK |
2. TYPE AND SPECIFICATION OF DOOR
表格
| TYPE | NAME | APPLICABLE DIMENSION |
|---|---|---|
| AF | CLASS A RECTANGULAR CORNER DOOR | 1200×600, 1400×600, 1400×700, 1400×750, 1400×800, 1600×600, 1600×700, 1600×800, 1600×900, 1700×600, 1700×700, 1700×800, 1700×900 |
| AY | CLASS A ROUND CORNER DOOR | 1200×600, 1400×600, 1400×700, 1400×750, 1400×800, 1600×600, 1600×700, 1600×800, 1600×900, 1700×600, 1700×700, 1700×800, 1700×900 |
| BF | CLASS B RECTANGULAR CORNER DOOR | 1200×600, 1400×600, 1400×700, 1400×750, 1400×800, 1600×600, 1600×700, 1600×800, 1600×900, 1700×600, 1700×700, 1700×800, 1700×900 |
| BY | CLASS B ROUND CORNER DOOR | 1200×600, 1400×600, 1400×700, 1400×750, 1400×800, 1600×600, 1600×700, 1600×800, 1600×900, 1700×600, 1700×700, 1700×800, 1700×900 |
| CF | CLASS C RECTANGULAR CORNER DOOR | 1200×600, 1400×600, 1400×700, 1400×750, 1400×800, 1600×600, 1600×700, 1600×800, 1600×900, 1700×600, 1700×700, 1700×800, 1700×900 |
| CY | CLASS C ROUND CORNER DOOR | 1200×600, 1400×600, 1400×700, 1400×750, 1400×800, 1600×600, 1600×700, 1600×800, 1600×900, 1700×600, 1700×700, 1700×800, 1700×900 |
| DF | CLASS D RECTANGULAR CORNER DOOR | 1200×600, 1400×600, 1400×700, 1400×750, 1400×800, 1600×600, 1600×700, 1600×800, 1600×900, 1700×600, 1700×700, 1700×800, 1700×900 |
| DY | CLASS D ROUND CORNER DOOR | 1200×600, 1400×600, 1400×700, 1400×750, 1400×800, 1600×600, 1600×700, 1600×800, 1600×900, 1700×600, 1700×700, 1700×800, 1700×900 |
NOTE:
- HOOK, BUMPER, DOOR CLOSER, C2 LOCK AND ISPS DEVICE COULD BE EQUIPPED ACC. TO CUSTOMER’S REQUIREMENTS.
- CLASS C&D DOOR MAY BE EQUIPPED WITH φ250 MM PORT LIGHT, THE CODE IS “G”.

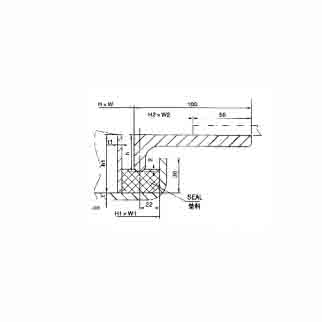

3. SECTION OF DOOR
表格
| THICKNESS OF DOOR
t |
SIZE OF RETAINER
h1×t1 |
HEIGHT OF DOOR FRAME
h |
MATERIAL OF DOOR FRAME |
|---|---|---|---|
| 8 | 50×6 | 32 | L100×63×8 ANGLE
CUT FROM L100×63×8 |
| 6 | 32×4 | 34 | L100×63×8 ANGLE
CUT FROM L100×63×8 |
| 4 | 32×4 | 36 | L100×63×8 ANGLE
CUT FROM L100×63×8 |
Note: The description may be different with the product, please contact us for quotation.
