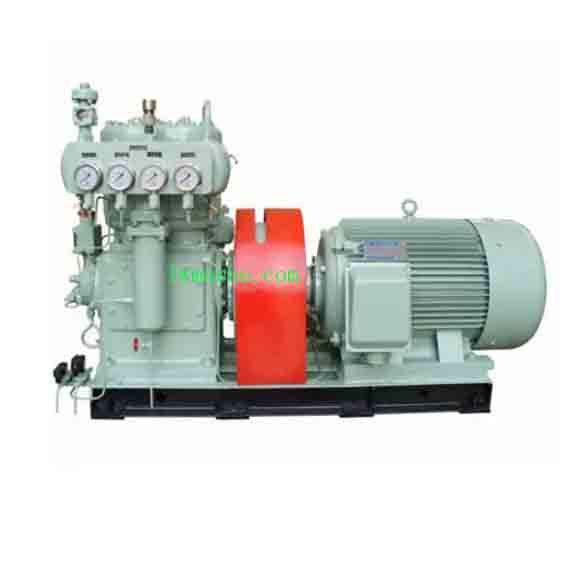

Vertical Water-Cooled Marine Air Compressor
The HC-265B vertical water-cooled marine air compressor is a premium, robustly engineered device specifically designed for reliable large ship engine starting and various marine applications. This water-cooled, two-stage piston compressor stands out with its ability to deliver a formidable 3.0 MPa discharge pressure, ensuring excellent cooling efficiency and pressure stability even in the most demanding and harsh marine environments.
Featuring a space-saving vertical design, the HC-265B is the perfect choice for compact engine rooms where high performance cannot be compromised. Its versatility makes it suitable for a wide range of applications, including:
- Ship engine starting systems
- Pneumatic tool operation
- Marine control systems
- Breathing air supply systems
Key Features & Benefits for Enhanced Marine Performance
✔ Vertical Space-Saving Design: Ideal for tight shipboard installations, maximizing available space without sacrificing performance.
✔ Water-Cooled Efficiency: Superior heat dissipation capabilities ensure continuous, reliable operation in high-temperature marine conditions.
✔ Two-Stage Compression: Efficiently delivers high-pressure air (3.0 MPa), meeting the demanding requirements of marine applications.
✔ Pressure Balance Technology: Guarantees stable and reliable performance, minimizing fluctuations and ensuring consistent air supply.
✔ Gear Pump Lubrication: Reduces wear and tear, extending the service life of the compressor and minimizing maintenance needs.
✔ Flexible Unloading Options: Offers manual or solenoid valve control for easy and efficient operation, catering to diverse user preferences.
✔ Rugged Marine Construction: Built to withstand saltwater corrosion and vibration, ensuring durability and longevity in harsh marine environments.
Marine Vertical Air Compressor: Main Technical Parameters
Below are the detailed technical parameters for various models of the marine vertical air compressor, providing comprehensive information for selection and installation:
| Model No. | Type | Discharge Capacity (m³/h) | Discharge Pressure (kgf/cm²) | Speed (r/min) | Motor Power (KW) | Overall Size (L×W×H) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| KY21-003 | V-0.7/30A | 42 | 30 | 1000 | 11 | 1230×630×780 | 380 |
| KY21-004 | V-0.7/30A | 42 | 30 | 1000 | 11 | 1230×630×780 | 380 |
| KY21-005 | V-0.7/30A | 42 | 30 | 1000 | 11 | 1230×630×780 | 380 |
| KY21-008 | V-0.6/25-A | 36 | 25 | 970 | 11 | 1060×750×800 | 325 |
| KY21-009 | V-0.6/30 | 36 | 30 | 970 | 11 | 1060×750×800 | 325 |
| KY21-010 | V-0.6/30 | 36 | 30 | 970 | 11 | 1060×750×800 | 325 |
| KY21-011 | V-0.6/30A | 36 | 30 | 900 | 11 | 1230×700×780 | 380 |
| KY21-012 | V-0.6/30A | 36 | 30 | 900 | 11 | 1230×700×780 | 380 |
| KY21-013 | V-0.45/30A | 27 | 30 | 750 | 7.5 | 1180×700×890 | 380 |
| KY21-014 | V-0.45/30A | 27 | 30 | 750 | 7.5 | 1180×700×890 | 380 |
| KY21-015 | V-0.5/30A | 30 | 30 | 800 | 7.5 | 1180×700×780 | 380 |
| KY21-016 | V-0.5/30A | 30 | 30 | 800 | 7.5 | 1180×700×780 | 380 |
| KY23-002 | V-0.5/40 | 30 | 40 | 860 | 11 | 1230×630×780 | 420 |
| KY23-003 | V-0.5/40 | 30 | 40 | 860 | 11 | 1230×630×780 | 420 |
| KY23-004 | V-0.5/40 | 30 | 40 | 860 | 11 | 1230×630×780 | 420 |
Note: The description might be incorrect, please contact us for confirmation.
